Panasonic FS-A1ST
 | |
| FS-A1ST on display, with a cartridge in the top slot (photograph by Tilemahos Efthimiadis, CC BY-SA 2.0) | |
| Specifications | |
|---|---|
| Manufacturer | Matsushita Electric Industrial (Panasonic) |
| Type | MSX turbo R home computer |
| Released | November 1990[1] |
| Intro price | ¥87,800 excluding tax[2] |
| CPU | R800, with a Z80A-compatible CPU[2] |
| Memory | 256 KB main RAM, 128 KB video RAM, 16 KB SRAM; 1.5 MB ROM[2] |
| Storage | 3.5-inch double-sided drive, 720 KB formatted[2] |
| Display | Yamaha V9958[2] |
| Sound | PSG in the T9769 MSX-Engine, YM2413 FM (MSX-MUSIC), PCM[2] |
| Power | AC 100 V ±10 %, 50/60 Hz, 21 W; two AA cells for backup[2] |
| Dimensions | 425 × 292 × 89 mm[2] |
| Weight | 3.4 kg[2] |
| OS / Firmware | — |
| Successor | Panasonic FS-A1GT |
| Model no. | FS-A1ST |
The Panasonic FS-A1ST is an MSX turbo R computer that Matsushita Electric Industrial released in Japan in November 1990 under the Panasonic name. It has the 16-bit R800 processor alongside a Z80A-compatible processor for older software, 256 KB of main RAM, a V9958 video processor, MSX-MUSIC, PCM recording and playback, a built-in 3.5-inch drive and a Japanese word processor in ROM.[2] Panasonic was the only maker of turbo R machines, which were sold only in Japan; the FS-A1ST was followed by the Panasonic FS-A1GT.[1]
Specifications
[edit | edit source]| Item | Figure |
|---|---|
| CPU | R800, with a Z80A-compatible CPU |
| ROM | 1.5 MB: Kanji BASIC 4.0, Disk BASIC, MSX-MUSIC BASIC, 16-dot font, MSX-JE dictionary, word processor |
| RAM | 256 KB main, 128 KB video, 16 KB SRAM (backed up) |
| Video | V9958 |
| System controller | T9769 MSX-Engine (PSG, RTC, keyboard, printer and joystick ports) |
| FM sound | YM2413 |
| Drive | 3.5-inch 2DD, 1 MB unformatted, 720 KB formatted |
| Interfaces | Two cartridge slots, printer, two general-purpose ports, S-video, composite video, audio, RGB, RF |
| Supply | AC 100 V ±10 %, 50/60 Hz, 21 W; DC 3 V from two AA cells for backup |
| Size and weight | 425 × 292 × 89 mm, 3.4 kg |
[2] The machine has no cassette connector. It has six indicator lamps: power, caps lock, kana lock, pause, CPU mode and drive in use.[1]
Hardware
[edit | edit source]The mains transformer, the keyboard, the drive, the LED board and the switch board are separate; everything else, the power supply included, is on the main board.[3][4] The Technical Guide's parts list gives these main ICs:[5]
| Position | Part | Function |
|---|---|---|
| IC28 | R800 | 16-bit CPU |
| IC27 | S1990 | System IC |
| IC17 | T9769C | MSX-Engine |
| IC16 | V9958 | Video processor |
| IC21 to IC24 | 1464-12 | Video RAM |
| IC30, IC32 | MN41C4256-08 | Main RAM |
| IC25, IC26 | 5165 | SRAM, backed up by the AA cells |
| IC12, IC18 | Mask ROMs | 4 Mbit and 8 Mbit |
| IC10 | YM2413 | FM sound (MSX-MUSIC) |
| IC7 | TC8566AF | Floppy disk controller |
| IC6 | CXA1145 | Video encoder for composite, S-video and RF |
| IC14 | MC34063 | DC/DC converter for +5 V |
| IC11, IC13 | C24M12HF, AN7912T | +12 V and −12 V regulators |
[5][6] The parts list gives four crystals: X1 16 MHz, X2 32.7 kHz, X3 28.6 MHz and X4 21.47 MHz. The Technical Guide's checks take the floppy controller's clock from X1 and the R800's clock from X3.[5][7]
Power supply
[edit | edit source]The transformer's centre-tapped secondary reaches the main board at CN1. D2 and D3 charge the reservoir capacitor C50 (25 V, 12000 µF), which feeds both the +5 V switching converter and the +12 V regulator. The +5 V converter is built round IC14 (MC34063) and transistor Q1, with a crowbar (zener D9 and thyristor D1) across its output. IC11 regulates +12 V; D4, D5 and C59 feed IC13 for −12 V.[4][5] Alexandre Souza of Tabajara Labs found the same supply in the FS-A1FX, FS-A1WX, FS-A1WSX, FS-A1ST and FS-A1GT, with only the switching transistor differing.[8]
Backup cells
[edit | edit source]The SRAM holds the word processor's learning dictionary and the settings made with BASIC's SET commands. It and the clock run from two AA cells when the machine is off, and Panasonic shipped the machine without the cells fitted.[9]
Known problems
[edit | edit source]- The drive belt perishes. Owners report belts that melted onto the pulleys, and a melted belt can stick and block the mechanism.[10][11] See Panasonic FS-A1ST General Maintenance.
- The MSX Resource Center advises against alkaline backup cells because they leak sooner or later, and recommends lithium cells or Eneloop rechargeables.[1]
- In a 2007 report, C50 (25 V, 12000 µF) ran very hot and then smoked on a machine whose transformer had been replaced with a 220 V one.[12]
- In a 2025 case, a 6.3 V 1000 µF capacitor on the YM2413's supply failed short circuit; the machine also needed a new voltage regulator before it would start.[13]
- The 512 KB RAM upgrade that some machines carry can fail; one owner's took out an address line of the S1990.[11]
- The audio mixing is badly set from the factory: slot sound too loud, FM too quiet and over-filtered. A published modification changes six surface-mount parts.[14]
Documentation
[edit | edit source]Panasonic's Technical Guide for the FS-A1ST, in Japanese, is described on the Panasonic FS-A1ST Technical Guide page. It has the disassembly procedure, pass/fail checks with expected voltages and waveforms, circuit diagrams and the parts lists.
Repair guides
[edit | edit source]- Panasonic FS-A1ST General Maintenance
- Panasonic FS-A1ST Troubleshooting Guide
- Panasonic FS-A1ST Capacitor Replacement Guide
Gallery
[edit | edit source]-
The R800 at IC28 (photograph by Yaca2671, CC BY-SA 3.0) -

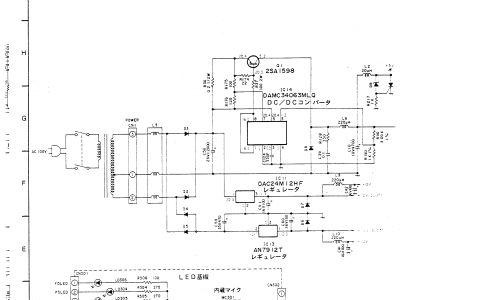

Power supply circuit from the Technical Guide -
Disassembly page of the Technical Guide
.jpg)
.png)
.png)
Related pages
[edit | edit source]- Panasonic FS-A1GT, the later turbo R
- Panasonic FS-A1WX and Panasonic FS-A1WSX, MSX2+ machines with the same supply design
- Panasonic FS-A1ST Technical Guide
