Panasonic CF-2000
 | |

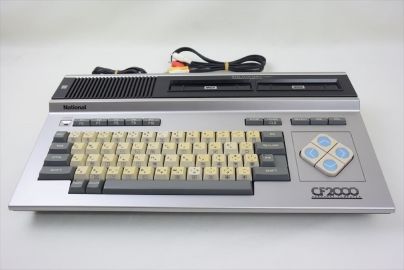

| A National CF-2000, photographed for the MSX Resource Center | |
| Specifications | |
|---|---|
| Manufacturer | Matsushita Electric Industrial (National brand) |
| Type | MSX1 home computer |
| Released | October 1983 (Japan)[1] |
| Intro price | ¥54,800[1] |
| CPU | Z80A compatible (NEC D780C-1), 3.579545 MHz[2][1] |
| Memory | 16 KB RAM, 16 KB video RAM, 32 KB ROM[2][1] |
| Storage | Cassette, MSX cartridges |
| Display | TMS9918A compatible[2] |
| Sound | AY-3-8910 compatible[2] |
| Power | AC 100 V, 50/60 Hz, 25 W[3] |
| OS / Firmware | MSX BASIC version 1.0 |
| Model no. | CF-2000 |
The National CF-2000 is the first MSX computer from Matsushita Electric Industrial, the company that has traded as Panasonic since 2008. It went on sale in Japan in October 1983 at ¥54,800 under Matsushita's National brand, with 16 KB of RAM, two cartridge slots and the keyboard and power supply in one case.[1][4] Matsushita's Japanese owner's manual is hosted here and described on Panasonic CF-2000 Documentation.
History
[edit | edit source]The CF-2000 was the first machine in National's "King Kong" range of MSX computers.[1] The later National CF-2700 doubled the RAM to 32 KB and was sold abroad as the Panasonic CF-2700 with 64 KB; the National CF-3000 has a separate keyboard.[5] The first CF-2700 used the same BIOS and BASIC ROM as the CF-2000.[5]
Specifications
[edit | edit source]| Item | Figure |
|---|---|
| Processor | Z80A compatible (NEC D780C-1) at 3.579545 MHz |
| ROM | 32 KB, MSX BASIC version 1.0 |
| RAM | 16 KB main, 16 KB video |
| Video | TMS9918A compatible |
| Sound | AY-3-8910 compatible |
| Slots | Two, side by side at the top right |
| Ports | Cassette (DIN 8), video and sound (RCA), RF converter (DIN 5), two joystick ports; no printer port |
| Power | AC 100 V, 50/60 Hz, 25 W |
[2][6][1][3] A working machine starts with "MSX BASIC version 1.0, Copyright 1983 by Microsoft." and "12431 Bytes free".[7]
Hardware
[edit | edit source]The rear panel carries, from left to right, the cassette socket, the sound and video outputs and the 5-pin socket for the CF-2111 RF converter; the power switch is on the left-hand side and the two joystick ports on the right-hand side.[8] The RF converter takes its +5 V supply from pin 1 of the 5-pin socket.[6] The owner's manual describes the converter as an option bought separately; the MSX Resource Center lists it as included in the box.[7][1]
A photograph of an opened CF-2000 shows a mains transformer labelled FBM-202-002 (100 V, 13.2 V, 25.4 VA) and a separate power supply board with three large reservoir capacitors, joined to the main board by a ribbon harness. The main board, marked FBM-485-028, carries eight µPD416C-3 video RAMs and eight µPD416C-2 main RAMs, the AY-3-8910 (IC20) and the D8255AC-5 PPI (IC25), and on that machine a small board marked ROM ADP holding two EPROMs.[9] The µPD416 dynamic RAM runs from +5 V, +12 V and −5 V; Matsushita's service manual for the CF-2700 draws the same part with all three supplies.[10]
Using it safely
[edit | edit source]The owner's manual says to insert and remove cartridges only with the power off, and not to open the slot covers by hand: opening a slot cover while the machine is on destroys the program that is running.[11] It runs only on 100 V mains.[3]
Documentation
[edit | edit source]- Panasonic CF-2000 Documentation: the Japanese owner's manual (202 pages), with connector pinouts and a fault table. No service manual for the CF-2000 has been found.
Repair guides
[edit | edit source]- Panasonic CF-2000 General Maintenance
- Panasonic CF-2000 Troubleshooting Guide
- Panasonic CF-2000 Capacitor Replacement Guide
See also Capacitor Failure Symptoms.
Gallery
[edit | edit source]-
The CF-2000 -
Inside, with the supply board at the left -
Rating plate: AC 100 V, 25 W
Related pages
[edit | edit source]References
[edit | edit source]- ↑ 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 National CF-2000, MSX Resource Center wiki, 7 March 2026—link(accessed 2026-10-21) The first MSX computer from Matsushita, for the Japanese market; October 1983; ¥54,800; 16 KB of RAM in slot 0, 16 KB VRAM; TMS9918ANL video; AY-3-8910 PSG; separate ICs, no MSX-Engine; NEC D780C-1 CPU; one unit with keyboard and power supply built in; two cartridge slots at the top right; light grey case with light yellow keys and a blue and white cursor pad; part of National's "King Kong" range; no printer port, a printer connects through the CF-2121 cartridge; connections: audio and composite video output, data recorder, two general ports, two slots and an RF adaptor output for the CF-2111 RF converter.
- ↑ 2.0 2.1 2.2 2.3 2.4 Matsushita, パーソナルコンピュータ MSX CF-2000 取扱説明書 (CF-2000 owner's manual, in Japanese), 資料編 (reference part) page ①, "主要LSIとメモリ": CPU Z-80A compatible, clock 3.579545 MHz (the television colour subcarrier frequency), one wait state inserted in each M1 cycle; CRTC TMS-9918A compatible; PSG AY-3-8910 compatible; PPI I-8255 compatible; ROM MSX BASIC interpreter 32 KB; RAM 16 KB standard. See Panasonic CF-2000 Documentation.
- ↑ 3.0 3.1 3.2 File:National CF-2000 rating label.jpg, rating plate of a CF-2000 photographed for the MSX Resource Center wiki by Mars2000you (uploaded 5 March 2016): 品名 パーソナルコンピュータ, 品番 CF-2000, 電源入力 AC100V 50/60Hz 25W, 松下電器産業株式会社, Made in Japan.
- ↑ Panasonic, Wikipedia—link(accessed 2026-10-21) The company's corporate name was Matsushita Electric Industrial Co., Ltd. from 1935 to 1 October 2008, when it became Panasonic Corporation; in 2008 it also discontinued its National brand in Japan.
- ↑ 5.0 5.1 National CF-2700, MSX Resource Center wiki, 7 March 2026—link(accessed 2026-10-21) The National CF-2700 (October 1984) has 32 KB of RAM; the Panasonic-branded version sold outside Japan has 64 KB; the first release has the same BIOS and BASIC ROM as the CF-2000.
- ↑ 6.0 6.1 Matsushita, CF-2000 owner's manual, 資料編 pages ⑥ to ⑧, "コネクタ一覧": video output on a 5-pin DIN (1 +5 V, 2 GND, 3 AUDIO, 4 MONITOR VIDEO, 5 RF VIDEO) and an RCA composite socket; cassette on an 8-pin DIN (DIN 45326 pattern): 1, 2, 3 and 8 GND, 4 CMTOUT, 5 CMTIN, 6 REM+, 7 REM−; joystick ports on 9-pin AMP connectors driven by the AY-3-8910-compatible PSG (4 inputs, 1 output and 2 bidirectional lines per port, TTL levels); cartridge bus on a 50-pin 2.54 mm connector: 41 and 43 GND, 42 CLOCK, 44 SW1, 45 and 47 +5 V, 46 SW2, 48 +12 V, 49 SUNDIN, 50 −12 V; audio output on RCA. See Panasonic CF-2000 Documentation.
- ↑ 7.0 7.1 Matsushita, CF-2000 owner's manual, 入門編 (introduction) page 5, "電源投入" (switching on): switch the display on first, then plug the computer into AC 100 V and turn its power switch on; the power lamp lights and the screen shows "MSX BASIC version 1.0 / Copyright 1983 by Microsoft. / 12431 Bytes free / Ok". Page 4: a television without a video input needs the optional RF converter CF-2111, sold separately. See Panasonic CF-2000 Documentation.
- ↑ Matsushita, CF-2000 owner's manual, 入門編 pages 2 and 3, "各部の名称と機能": front: slots, power lamp, edit keys, cursor keys, status lamps, function keys, keyboard; rear: cassette input (CASSETE), sound output (SOUND), video output (VIDEO), RF converter socket (RF ADAPTER), power cord for AC 100 V; left side: power switch; right side: general ports PORT1 and PORT2 for up to two joysticks or tablets. See Panasonic CF-2000 Documentation.
- ↑ File:National CF-2000 inside.jpg, photograph of an opened CF-2000 uploaded to the MSX Resource Center wiki by Mars2000you on 2 June 2025. Read from it: transformer label "100V 13.2V 25.4VA FBM-202-002"; power supply board marked FBM-4... with IC101, Q101 and Q102, three large electrolytic capacitors and one smaller one; main board FBM-485-028 with "JC1-D1S" marking; µPD416C-3 (eight, beside the video chip) and µPD416C-2 (eight, along the front edge); GI AY-3-8910 at IC20; NEC D8255AC-5 at IC25; a ROM ADP daughter board with two windowed EPROMs marked ROM1 and ROM2; several wire links on the main board.
- ↑ Matsushita, Service Manual: Personal Computer CF-2700 (IED84113035C2), printed page 9, Fig. 7: video RAM IC49 to IC56, µPD416C-3, each with +5 V (pin 9), +12 V (pin 8) and −5 V (pin 1) supplies. See Panasonic CF-2700 Service Manual.
- ↑ Matsushita, CF-2000 owner's manual, 取扱上のご注意 (handling precautions, before 入門編 page 1): insert and remove cartridges with the power off; do not open the slot covers by hand, as opening them with the power on destroys the running program; avoid high or low temperatures, direct sunlight, dust and sudden temperature changes (the case may discolour); do not spill drinks; do not dismantle it; clean with a dry cloth, not thinners or benzine; avoid shocks; keep it away from radios, which it can interfere with; do not connect equipment not specified for it. 入門編 page 24, "カートリッジ": switch off before inserting or removing a cartridge, check the cartridge's direction and slot, make sure it is fully home before switching on, and do not touch or wet the contacts. See Panasonic CF-2000 Documentation.
