File:SGI Origin 3000 C-brick front view.png
Size of this preview: 583 × 600 pixels. Other resolution: 1,235 × 1,271 pixels.
Original file (1,235 × 1,271 pixels, file size: 236 KB, MIME type: image/png)
Summary
[edit | edit source]

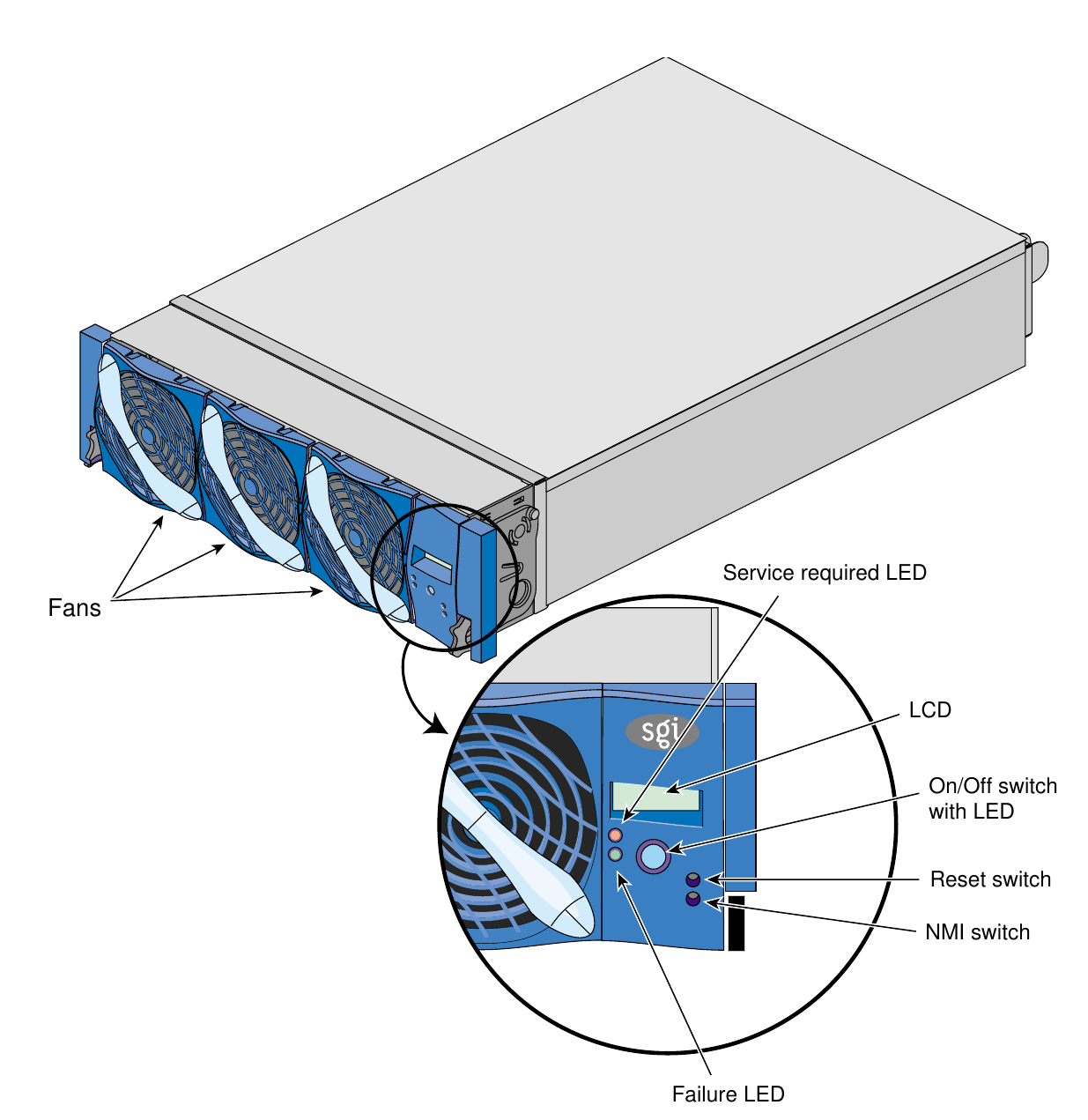

Drawing of the Origin 3000 C-brick with its three front fans and, enlarged, the L1 controller panel: LCD, service-required LED, failure LED, On/Off switch with LED, reset and NMI switches.
Source
[edit | edit source]
Rendered from SGI, SGI Origin 3000 Series Owner's Guide, 007-4240-002, p. 117, Figure 4-1 (File:SGI Origin 3000 Series Owner's Guide (007-4240-002).pdf), 2026-10-22.
Author
[edit | edit source]
Silicon Graphics, Inc.
Licence
[edit | edit source]
Copyright Silicon Graphics, Inc. Hosted for preservation and repair reference, with the source cited.
