File:Sinclair QL Issue 6 layout, power supply area.png
Size of this preview: 784 × 600 pixels. Other resolution: 1,118 × 855 pixels.
Original file (1,118 × 855 pixels, file size: 34 KB, MIME type: image/png)
Summary
[edit | edit source]

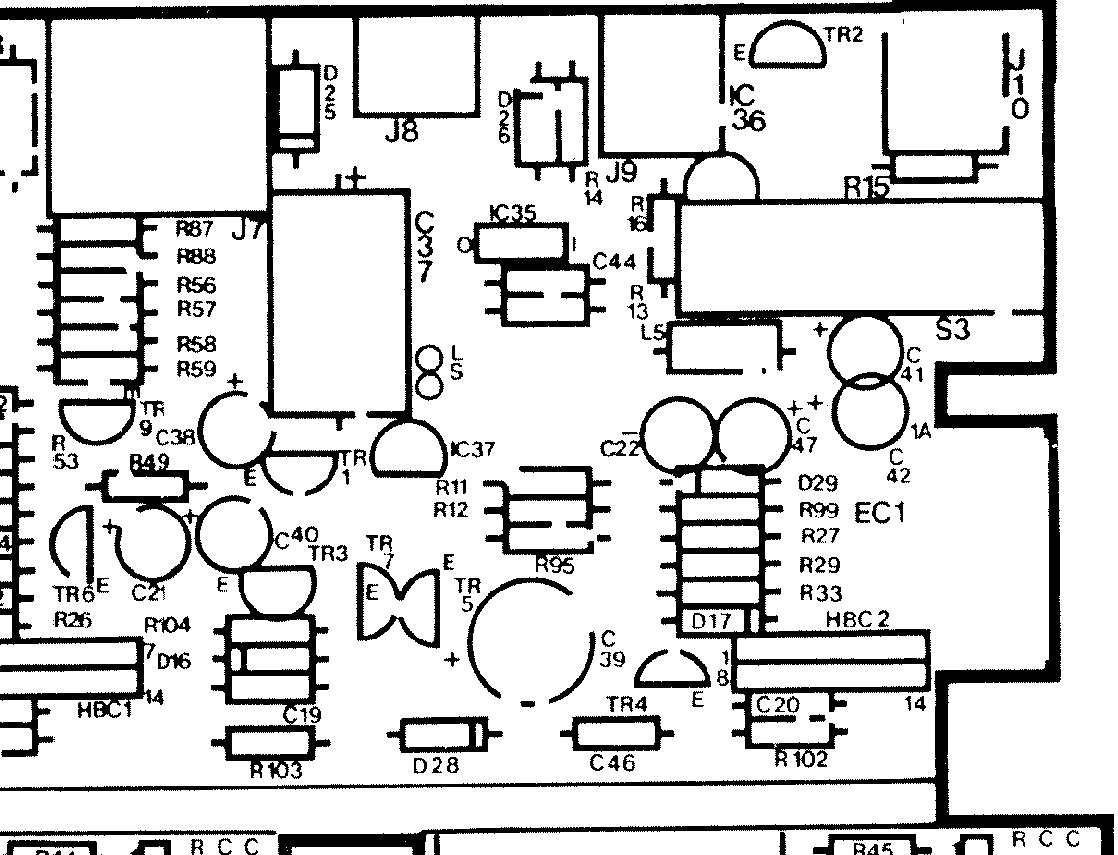

Part of Sinclair's Issue 6 component layout for the Sinclair QL main board around the power input: the +5 V regulator IC35 (input and output marked I and O), the 79L12 (IC36) and 78L12 (IC37), C38, C41 and C42, and connectors J7 to J10.
Source
[edit | edit source]
Cropped from File:Sinclair QL PCB component layout (Issue 6).png, Sinclair's Issue 6 component layout (QL Service Manual, Figure 5.2, page 5.12).
.png){kind=link}
Author
[edit | edit source]
Sinclair Research Ltd
Licence
[edit | edit source]
Copyright Sinclair Research Ltd. Reproduced from the service manual for repair reference; not freely licensed.
