Sinclair QL Voltage Regulator Replacement

From RetroTechCollection
Sinclair QL board detail

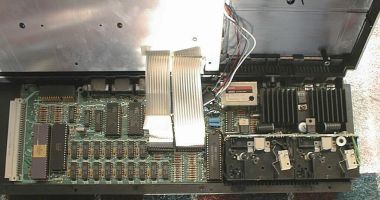

Inside a QL: the finned heatsink above the Microdrives carries the +5 V regulator (photo: Cjp24, CC BY-SA 3.0)

The Sinclair QL makes its +5 V logic supply on the main board with a single 7805 regulator, IC35, bolted to the finned heatsink beside the Microdrives. It takes the unregulated 9 V DC from the external power pack.[1][2] Tony Firshman of TF Services includes the regulator's output and its contact with the heatsink in his checklist for a crashing QL, and replaces the 7805 when its output falls below about 4.8 V.[3]

Symptoms

[edit | edit source]
  • The +5 V rail is low. Sinclair's limit at the + side of C42 is 5.0 V ± 0.15 V with no discernible ripple; Firshman renews the regulator below about 4.8 V.[4][3]
  • Crashes or lock-ups, especially after the QL has warmed up. Firshman's checklist for a crashing QL includes the 5 V rail and the regulator's contact with its heatsink.[3]
  • Sinclair's fault table gives "TV output distorted" and "no TV output" with the remedy "renew IC35".[5]

Faults that look similar:

  • No power at all can be the ±12 V regulators IC37 and IC36, or the power pack, socket or plug. Firshman finds dry joints on the QL's power socket, especially on machines used with the case off.[5][3] Check the 9 V input at C41 first: if it is outside 7 to 11 V the fault is before the regulator.[4]
  • A missing start-up screen with good rails is a logic fault; see the Sinclair QL Troubleshooting Guide.

Safety

[edit | edit source]

There is no mains voltage inside the QL; the highest voltage on the board is the 44 V peak-to-peak AC feed from the power pack.[1] The regulator and heatsink run hot: let them cool before handling. Use an earthed, low-power soldering iron; the QL's pads lift easily.[6]

Tools and parts

[edit | edit source]
  • A 7805 regulator in a TO-220 package, the type in Sinclair's parts list.[2] Firshman notes that a 78S05 (2 A) can be fitted but hardly seems worth it, and that it makes no difference to expansions.[3]
  • Thermal grease (Firshman uses silicone grease).[6][3]
  • A 10 nF capacitor for the regulator input.[3]
  • A cross-head screwdriver, a soldering iron, desoldering braid or pump, and a multimeter.

Firshman advises against the Qpower switch-mode regulator, which he says produces RF interference and does not help expansions, and against mounting the 7805 outside the case.[3]

Procedure

[edit | edit source]

Measuring the rail

[edit | edit source]
Sinclair QL Issue 6 layout, power supply area
Sinclair's Issue 6 layout around the power input: IC35 with its input (I) and output (O) marked, IC36, IC37, C38, C41 and C42
  1. Open the case: remove the four 5/16-inch screws along the front edge and the four 1¼-inch screws along the rear edge, but not the two screws below the Microdrives, and lift the top half. It stays connected by the keyboard ribbons and LED leads.[7]
  2. Power the QL and measure the regulator input at the + side of C41 (9.0 V ± 2.0 V) and the output at the + side of C42 (5.0 V ± 0.15 V).[4]
  3. Firshman measures the 5 V line at the regulator itself, between the centre and left-hand pins viewed from the front of the QL.[3]
  4. Feel the heatsink after a few minutes. Firshman checks that the whole heatsink gets hot; if only the regulator is hot, its contact with the heatsink is poor.[3]

Improving the heatsink contact

[edit | edit source]
  1. Switch off and unplug. Release the screw that holds IC35 to the heatsink and keep the M3 × 10 mm screw with its brass plain and crinkle washers.[7]
  2. Clean the old compound off the regulator and the heatsink, smear thermal grease on the back of the regulator, and refit the screw tightly.[6][3]

Replacing the regulator

[edit | edit source]
  1. Sinclair's heatsink assembly lists a three-pin connector (Molex 4025) with the regulator; check how IC35 is connected on your board before desoldering anything.[2]
  2. To take the heatsink off, release the IC35 screw as above.[7]
  3. To work on the underside of the board, take it out: remove both Microdrives (three pan-head screws each, two at opposite corners of the drive chassis and one from under the lower case; do not confuse them with the countersunk motor screws), then the reset button, the loudspeaker leads from the wire post socket, the two pan-head screws near the expansion connector and the loudspeaker (¼-inch, with fibre washers) and the push-fit Microdrive extension bung. Ease the board off its locating dowels, lifting it at the expansion connector end.[7]
  4. Desolder the old 7805 with a desoldering technique that does not overheat the pads.[6]
  5. Fit the new 7805 the same way round: viewed from the front of the QL, Firshman's pin order is output on the left, ground in the centre and input on the right, and the layout marks the input I and the output O.[3]
  6. Solder a 10 nF capacitor directly across the input (right-hand) and centre pins.[3]
  7. Smear thermal grease on the back of the regulator, refit it to the heatsink with the M3 screw and its washers, and tighten the screw.[6][3]
  8. Inspect the board for solder splashes; Sinclair warns that hairline splatter can measure several ohms and give misleading symptoms.[6]

Reassembly

[edit | edit source]
  1. Refit the board reset-button end first, then the screws, the Microdrive extension bung and the loudspeaker leads, and the reset button.[7]
  2. Refit the Microdrives. The drive in the left-hand (MDV1) position has an RF shield over its ULA; check that it is in place. Straighten the bare ends of each drive's ribbon cables and push them fully home.[7]
  3. Reconnect the keyboard ribbons and LED leads and close the case.[7]

Testing

[edit | edit source]
  1. Measure 5.0 V ± 0.15 V at C42 with no discernible ripple.[4]
  2. Run the QL for a while and check that the whole heatsink gets hot.[3]
  3. Check that the start-up screen appears and the QL no longer crashes.

Expansions

[edit | edit source]

For QLs running memory and disk expansions, Firshman also runs a thicker wire from the 5 V line at the regulator's left-hand pin to the RAM 5 V rail, the thick track running from just above R68 and under IC7.[3]

Revision notes

[edit | edit source]

Ventilation openings at the top rear of the case and a new heatsink were introduced at build standard D04.[8]

[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.0 1.1 Sinclair QL Service Manual (File:Sinclair QL Service Manual.pdf), Sinclair Research, prepared by Thorn (EMI) Datatech, issue 3, October 1985, Section 1 para 8 "Power Supplies": 9 V DC at 2 A and 44 V peak-to-peak AC from the pack; IC37 and IC36 for ±12 V; IC35 for +5 V; thermal and short-circuit protection in all three regulators.
  2. ↑ 2.0 2.1 2.2 Sinclair QL Service Manual, Section 5, Table 5.2 "Heatsink Assembly": Wakefield Mk.2 heatsink, +5 V regulator IC35 type 7805, 3-pin connector (Molex 4025), M3 × 10 mm pan-head screw and M3 plain washer.
  3. ↑ 3.00 3.01 3.02 3.03 3.04 3.05 3.06 3.07 3.08 3.09 3.10 3.11 3.12 3.13 3.14 3.15 Tony Firshman, "QL Troubleshooting", TF Services, last updated 28 October 2003. Measuring the 5 V line at the regulator pins; renewing the 7805 below about 4.8 V; silicone grease, the 10 nF input capacitor, a tight screw and a hot heatsink; the 78S05 and the Qpower regulator; keeping the regulator inside the case; the extra 5 V wire to the RAM rail.
  4. ↑ 4.0 4.1 4.2 4.3 Sinclair QL Service Manual, Section 4 para 2.2.3, supply test points: ±12 V regulator input at the + side of D26, 15.6 V AC ± 2.0 V; +5 V regulator input at the + side of C41, +9.0 V ± 2.0 V; +12 V output at the + side of C38, +12.0 V ± 0.25 V; +5 V output at the + side of C42, +5.0 V ± 0.15 V, no discernible ripple.
  5. ↑ 5.0 5.1 Sinclair QL Service Manual, Section 4, fault-finding guide: "TV output distorted" and "no TV output", renew IC35; "loss of power", check IC37 and IC36.
  6. ↑ 6.0 6.1 6.2 6.3 6.4 6.5 Sinclair QL Service Manual, Section 4 para 3.1 repair notes: desoldering and heatsinking technique, an earthed low-power iron, good contact between IC35 and its heatsink, and thermal grease on a new regulator.
  7. ↑ 7.0 7.1 7.2 7.3 7.4 7.5 7.6 Sinclair QL Service Manual, Section 2 "Disassembly/Assembly": paras 1.1 (case), 1.2 (heatsink and Microdrives), 1.3 (circuit board) and 2.3–2.4 (assembly).
  8. ↑ Urs König, "Sinclair QL Build Standards", sinclairql.net. The D04 build standard: ventilation openings at the top rear and a new heatsink.
