Sinclair ZX Spectrum
 | |
| Sinclair ZX Spectrum 48K, the original rubber-key model (photo: Bill Bertram, CC BY-SA 2.5) | |
| Specifications | |
|---|---|
| Manufacturer | Sinclair Research Ltd |
| Type | Home computer |
| Released | 23 April 1982[1] |
| Intro price | £125 (16K), £175 (48K)[1] |
| CPU | Zilog Z80A at 3.5 MHz |
| Memory | 16 KB or 48 KB RAM |
| Storage | Cassette, through 3.5 mm EAR and MIC jacks |
| Display | 256×192 pixels, 32×24 characters, 15 colours |
| Sound | Single-channel beeper, driven from the ULA |
| ROM | 16 KB |
| Power | External unregulated 9 V DC through a 2.1 mm coaxial socket |
| OS / Firmware | Sinclair BASIC in ROM |
| Predecessor | Sinclair ZX81 |
| Successor | Sinclair ZX Spectrum+ |
| Model no. | ZX Spectrum 16K, ZX Spectrum 48K |
The Sinclair ZX Spectrum is an 8-bit home computer launched by Sinclair Research on 23 April 1982, in 16K and 48K versions priced at £125 and £175.[1] The rubber-key 16K and 48K machines were built on board issues 1 to 6A; the later model with an injection-moulded keyboard is the Sinclair ZX Spectrum+.
The technical figures below are from Sinclair's ZX Spectrum Service Manual and the Issue 3 circuit diagram.[2][3]
Architecture
[edit | edit source]| Part | Detail |
|---|---|
| CPU (IC2) | Zilog Z80A (or NEC µPD780) at 3.5 MHz, clocked from the ULA, which divides down the 14 MHz master crystal |
| ULA (IC1) | Ferranti uncommitted logic array: video, memory contention, keyboard scan, tape interface and beeper |
| ROM (IC5) | 16 KB, addresses 0000–3FFF |
| Lower RAM (IC6–IC13) | 16 KB in eight 16 kbit (4116) DRAMs, addresses 4000–7FFF, needing +5 V, −5 V and +12 V |
| Upper RAM (48K only) | 32 KB in eight 32 kbit DRAMs, addresses 8000–FFFF, with multiplexer and control ICs IC23–IC26 |
| Crystals | X1 14.000000 MHz and X2 4.43361875 MHz (PAL colour sub-carrier), the same on every issue |
| Video encoder | IC14 (LM1889) and the UHF modulator, channel 36 |
The ROM is 16 KB on every rubber-key Spectrum; "48K" refers to the RAM.[2]
The ULA's supply pins
[edit | edit source]The Issue 3 circuit diagram labels ULA pin 14 as Vcc1 (+5 V) and pin 40 as ground. Pin 13 (Vcc2) is fed through R34 (15 Ω, 1 W).[3] The Service Manual's fault-finding steps check IC1 pin 14 for +5 V with no discernible ripple, pin 40 for ground, and pin 13 for +3 V.[2] Probing pin 40 for +5 V will find nothing on a working board.
The ULA type changed with the board issues (5C102, 5C112 and 6C001 versions), and several resistor values depend on which ULA is fitted. The per-issue detail is on Sinclair ZX Spectrum General Maintenance.[2]
The ULA in Ferranti's records
[edit | edit source]Ferranti made the ULA, and its working files on the chip from 1981 to 1984 are in the Ferranti Archives 2026. The specification of the first production part, the 5C102, was first issued on 14 December 1981; the 5C112 logic diagram, "an updated version of the ULA 5C102", is dated 30 June 1982; and the 6C001 specification was issued on 26 August 1982.[4][5][6] Ferranti's lineage chart runs from the 5C102 through the 5C112 to the 6C001 marks 3, 5, 6 and 7, with a separate NTSC line (5C114 and 6C011). The mark 7, agreed with Sinclair in September 1983, added delay to the ULA's RAM timing; seven weeks earlier Ferranti had photographed the timing of fast mark 6 parts, one of which failed when cold.[7][8] The same files hold correspondence with Timex in Dundee, which built Spectrums for Sinclair, about memory faults on early boards in 1983 and about ULAs that misread the Spectrum+ keyboard in 1984.[9][10] The chip is described in Sinclair ZX Spectrum ULA and the memory-timing history in Sinclair ZX Spectrum Memory Timing.
Video
[edit | edit source]The display is 256×192 pixels, or 24 lines of 32 characters, with one attribute byte for each 8×8 character cell. The palette has 15 colours: seven colours at two brightness levels, plus black.[1] All the pixels in a cell share one ink and one paper colour, which produces the Spectrum's colour clash; it is a property of the design, not a fault.[1]
The ULA outputs luminance with sync (Y) and two colour-difference signals (U and V) on pins 15, 16 and 17. IC14 (LM1889) encodes the colour onto a 4.43 MHz sub-carrier, and the composite signal goes to the UHF modulator on channel 36.[2]
Power
[edit | edit source]The Spectrum takes an unregulated 9 V DC supply through a 2.1 mm coaxial socket.[2] The external pack contains a mains transformer, a full-wave rectifier and capacitive smoothing, with a thermal fuse at the transformer input.[2]
| Item | Figure |
|---|---|
| Power pack design limits | At 215 V AC mains and 1.4 A load, the voltage trough must not fall below 7.0 V; at 265 V AC and 600 mA, the peak must stay below 13 V (14 V in the re-typeset edition) |
| Regulator input (+ side of C50) | +9 V DC ± 2.0 V; below +7 V the regulator will not work correctly |
| Regulator output (+ side of C34) | +5 V DC ± 0.25 V, no discernible ripple |
| +5 V at the RAM | IC6 pin 9 |
| −5 V | IC6 pin 1 |
| +12 V | IC6 pin 8 |
| +12 VA (to IC14 only) | LT end of C52 |
The 13 V peak limit is from the 1984 Thorn EMI edition.[11]
The +5 V rail comes from a 7805 regulator on the board. The −5 V and +12 V rails for the 4116 lower RAM come from an inverter built around TR4 and TR5, which raises the 9 V input to more than +12 V; the square wave at TR4's collector is rectified and smoothed by D15 and C44, and R62 with C45 gives a separately smoothed +12 V for the video circuits and the expansion port.[2] The Issue 3 diagram also shows a −12 V output on edge-connector contact 23B.[3]
Sinclair recommends its DC-DC converter modification for any machine on which TR4 or the 16K DRAM has blown; some Issue 3B and 4A boards, and all later issues, have it built in.[2]
Edge connector
[edit | edit source]Sinclair's drawing numbers the contacts 1 to 28 on each side, with A on the underside and B on the component side.[3]
| Contact | Signal |
|---|---|
| 3A | +5 V |
| 4A | +9 V |
| 6A, 7A, 14A | 0 V |
| 15A | VIDEO |
| 20A | RESET |
| 25A | ROMCS |
| 20B | −5 V |
| 22B | +12 V |
| 23B | −12 V |
The full contact list is printed on the Issue 3 diagram.[3] The Spectrum has no composite video socket; video leaves through the UHF modulator.[2]
Storage
[edit | edit source]Programs are saved and loaded on cassette through the EAR and MIC jacks at about 1500 baud.[1] A single ULA pin (pin 28) handles both directions.[2]
Board issues
[edit | edit source]Sinclair's service documentation covers board issues 1, 2, 3, 3B, 4A, 4B, 5 and 6A; there was no Issue 4 or Issue 6.[2] Samsung also made an Issue 4S board, almost identical to the Issue 3B, which Sinclair's documentation does not cover; it is found in rubber-key as well as Spectrum+ cases.[12] The issues differ in ways that matter for repair: the ULA each takes, resistor values that change with the ULA, the DC-DC converter modification, and from Issue 5 a second ULA, IC27 (Mullard ZX 84/01), replacing six 74LS chips. Sinclair supplied 1000 Issue 5 boards, for the UK market only; IC27 is also listed for Issue 6A.[2] The per-issue detail is on Sinclair ZX Spectrum General Maintenance.
Ferranti's archive also holds period drawings of these boards: a 1982 Sinclair print with the early factory modifications pencilled in; Sinclair's Issue Two diagram of 16 August 1982, which draws the upper 32K on the main board as "optional 32K RAM"; a 1982 plug-in 32K board for Issue 1 machines, "RAM 32 Issue 1"; and Timex's Issue 3 (June 1983) and Issue 6A (September 1984) drawings, the first calling for a 5C112E ULA and the second for a 6C001E-7.[13][14][15][16][17] They are listed under Documentation.
Maintenance and repair
[edit | edit source]- Sinclair ZX Spectrum General Maintenance: ULA revisions, test points and supply figures
- Sinclair ZX Spectrum Troubleshooting Guide: fault-finding
- Sinclair ZX Spectrum Capacitor Replacement Guide: capacitors by board issue
- Sinclair ZX Spectrum Keyboard Membrane Repair: the membrane and its tails
Documentation
[edit | edit source]- Sinclair ZX Spectrum Service Manual: Sinclair's service manual for the ZX Spectrum and Spectrum+, with the supplement for Issues 4A to 6A (re-typeset edition)
- ZX Spectrum Servicing Manual (Thorn EMI Datatech, 1984): the March 1984 servicing manual, with the T.I.S. Repair Data section
- Issue 3 circuit diagram
- Ferranti Archives 2026: Ferranti's files on the Spectrum ULA, 1981 to 1984, including these board drawings:
- Sinclair circuit diagram with modifications 1 to 3 (© 1982, modifications pencilled to 15 October 1982)
- Sinclair Issue Two circuit diagram (SRC 102, 16 August 1982)
- 32K memory board, RAM 32 Issue 1 (1982)
- Timex Issue 3 circuit diagram (drawing 356-201891-02, June 1983)
- Timex Issue 6A circuit diagram, Ferranti version (drawing 356-280106-01, 25 September 1984)

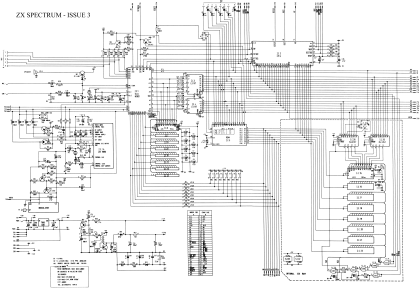

Schematic and PCB
[edit | edit source] |
 |
