Sega Saturn (Model 2) Black Screen Repair

From RetroTechCollection

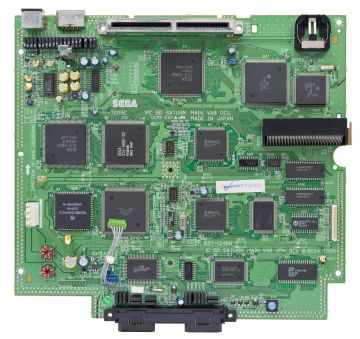

Sega Saturn VA8 main board
A VA8 Saturn main board (837-12468), one of the later boards with through-hole electrolytics (photo: Evan-Amos, public domain)

A Sega Saturn (Model 2) with a black screen powers up but shows no picture. The Model 2 case was fitted with several generations of main board. The early ones, VA SD and VA SG, are essentially Model 1 boards in the later case, and the fault finding for them is on the Sega Saturn (Model 1) Black Screen Repair page.[1][2] Most later boards, from VA6 onwards, use a different clock generator, and the VA13 board, whose schematics survive, takes only +5 V from its power supply and makes its own 3.3 V.[3][4] The steps below are for those later boards, with VA13 designators; check them against your own board's silkscreen.

Symptoms

[edit | edit source]
  • The power lamp lights but the screen stays black, or the picture is unstable.[3]
  • A black screen in which the television still locks to a signal points to the clocks or to communication between the chips; no signal at all points to the RGB encoder or its supply.[1]

Try another AV cable and a known-good game first; see the Sega Saturn (Model 2) Troubleshooting Guide.

Safety

[edit | edit source]

Warning: the power supply inside the case is at mains potential whenever the console is plugged in, and its reservoir capacitor can stay charged after unplugging.[5] Keep probes away from the supply board while measuring, and unplug the console before soldering.

Identify the board

[edit | edit source]

Read the board number from the silkscreen. The photograph above, for example, is marked "837-12468 IC BD SATURN MAIN VA8".[6]

Which page to follow
Board Clock generator Follow
VA SD, VA SG 315-5746 PLL, as on the Model 1[1][3] Sega Saturn (Model 1) Black Screen Repair
VA6 and later A CY2292SC on VA6 to VA9 boards, according to iVirtualZero; marked 315-6021 at IC20 on the VA13 schematic[3][7] This page

iVirtualZero also lists the PAL VA9 board with the older 315-5746, so read the chip itself at IC20.[3]

Tools and parts

[edit | edit source]
  • A multimeter, and an oscilloscope or a video converter that reports refresh rate and sync lock, such as an OSSC.[8]
  • A temperature-controlled iron, flux, desoldering braid and 99.9% isopropyl alcohol.[8]
  • A replacement for CE19 (100 µF on the VA13 drawing; read the voltage off the original part) and, if the 3.3 V supply is at fault, the parts named below.[7]

The supply on the VA13 board

[edit | edit source]

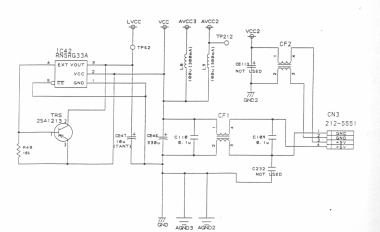

Sega Saturn VA13 power input and 3.3 V regulator schematic
The power input on the VA13 schematic (sheet 10/11): CN3 with two ground and two +5 V pins, the common-mode chokes CF1 and CF2, CE46 on +5 V, and the 3.3 V LVCC supply from IC42 (RN5RG33A) and TR5 (2SA1213) with CE47 and test point TP62

On the VA13 schematic the supply connector CN3 (212-5551) has ground on pins 1 and 2 and +5 V on pins 3 and 4. The +5 V passes through the common-mode chokes CF1 and CF2 to VCC, with CE46 (330 µF) on it. IC42, an RN5RG33A, drives the pass transistor TR5 (2SA1213) to make LVCC, the 3.3 V supply for the SDRAM, with CE47 (10 µF tantalum) on its output and test point TP62. The chokes L8 and L9 take +5 V to the analogue supplies AVCC3 and AVCC2.[4] The first-generation VA0 board takes +9 V, +5 V and +3.3 V from its supply instead.[9] A supplier of replacement units describes three Saturn supply types, two with 3.3, 5 and 9 V outputs and one with 5 V only or 5 V and 9 or 12 V.[10]

Check the supply

[edit | edit source]
  1. Unplug the console and remove the top case. Sega's procedure for the first-generation PAL machine removes six screws and slides the top case off; check your console for the same screws.[11]
  2. Disconnect the CD drive's connectors and flat cable and lift it out.[11]
  3. Plug in and switch on. Measure +5 V between CN3 pins 3 or 4 and pins 1 or 2.[4]
  4. Measure LVCC at TP62. It should be 3.3 V.[4][9]
  5. If +5 V is present and TP62 is not, unplug the console and check IC42, TR5 and CE47.[4]
  6. If +5 V is missing at CN3, the power supply is at fault.

The clock generator

[edit | edit source]

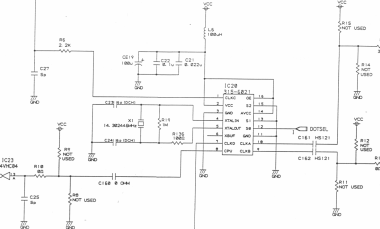

Sega Saturn VA13 clock generator IC20 schematic
IC20 (315-6021) on the VA13 schematic (sheet 6/11): crystal X1 on XTALIN and XTALOUT, CE19 with C21 and C22 on its supply through L6, DOTSEL on S0, and the CPU, CLKA and CLKB outputs

On the VA13 schematic IC20, marked 315-6021, is a 16-pin clock generator with a crystal X1 on XTALIN (pin 4) and XTALOUT (pin 5). Its supply comes from VCC through the choke L6 (100 µH), with CE19 (100 µF), C22 (0.1 µF) and C21 (0.022 µF) to ground. DOTSEL drives S0 (pin 12). The CPU output (pin 8) passes through IC23 (74VHC04) to MCLK0 at test point TP20 and the other master clock test points. CLKA (pin 10) reaches SCPUCLK at TP22 and CLKB (pin 9) reaches SCSPCLK at TP21, each through IC24.[7]

  1. Check the clocks at TP20, TP21 and TP22 with an oscilloscope, or check the refresh rate and sync lock on the RGB output with a converter that reports them. joostr14's rule is that clean, stable clocks mean the clock generator is not the fault.[8][7]
  2. Replace CE19 if the clocks are unstable or the capacitor shows any sign of leakage. joostr14 recommends replacing the capacitors before condemning the clock chip, and found stable clocks after a recap on all of the ten consoles he worked on in two weeks.[8]
  3. iVirtualZero reports that replacement CY2292SC chips can still be bought for the later boards, but was not sure whether they need programming. On the VA13 drawing the part at IC20 is marked with Sega's number, 315-6021.[3][7]

Corrosion and solder joints

[edit | edit source]

The cleaning, trace repair and reflow steps are the same as on the Model 1 board: see Sega Saturn (Model 1) Black Screen Repair#Repair corrosion and joints. On a VA SG board in a damp-damaged console, Walter Comunello found many joints detached from oxidised pads under factory solder; he lifted the chips, scraped the pads clean and resoldered them, and the console worked again.[8] joostr14 notes that an active flux such as RA flux may let pins reflow without lifting the chip, but it must be cleaned off completely.[8]

On VA SD and VA SG boards with a black screen, iVirtualZero found IC6 (315-5963), next to the BIOS and SRAM chips, running hot on two consoles.[1]

Testing

[edit | edit source]
Checks after repair (VA13 designators)
Check Where Expected
+5 V input CN3 pins 3 and 4 to pins 1 and 2 +5 V[4]
LVCC TP62 3.3 V[4][9]
Master clock TP20 (MCLK0) Clean and stable[7][8]
Video RGB output Stable refresh rate and sync lock[8]
Soak test Boot menu or a game No freezes over an extended run[1]
