Mattel Soccer
 | |

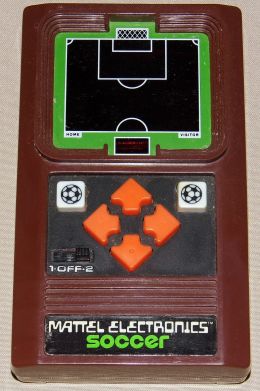

| A US Mattel Electronics Soccer in the brown case, switched off | |
| Specifications | |
|---|---|
| Manufacturer | Mattel Electronics (made in Hong Kong)[1][2] |
| Type | Handheld electronic game |
| Released | 1978[3][2] |
| CPU | National Semiconductor MM5799 (COPS I) microcontroller die, marked MM4799 C NDC, bonded to the board[4][5] |
| Memory | 1.5 K of 8-bit ROM and 96 four-bit words of RAM, inside the MM5799[5] |
| Storage | — |
| Display | LEDs for the players and ball; two-digit seven-segment LED readout for score and clock[4][2] |
| Sound | Speaker driven from the 74154 decoder: ticking, whistles, a victory tune[4][6] |
| Input | Four arrow keys, two KICK keys, 1-OFF-2 switch[2] |
| Power | One 9 V battery[7] |
| OS / Firmware | — |
| Model no. | 2678[3][4] |
Mattel Soccer (Mattel Electronics Soccer, model 2678) is a battery-powered handheld football game with an LED display, released by Mattel Electronics in 1978.[3][2] One or two players take turns running an attacker through five computer-controlled defenders and a goalkeeper and kicking for the goal.[8] It runs on one 9 V battery.[7] Inside, it is the same hardware as Mattel Basketball of the same year: a National Semiconductor MM5799 microcontroller die bonded straight to the circuit board, with a 4001 and a 74154 beside it.[4]
History
[edit | edit source]The Handheld Museum lists Soccer as a 1978 LED game, model 2678, and records a US design patent, D262,122, on the shape of the housing.[3] It came in two box styles: the original, larger box with a fold-out flap and the game packed in styrofoam blocks, and a later, smaller box with the game in a bubble-wrap bag. Boxes were also printed for Italy and Japan.[3]
Mattel wanted the case in dark forest green, but the pigment was too costly and the US game was made in brown. A green sample survives with "SAMPLE NOT FOR SALE" melted into the back, and its football-pattern buttons are painted Basketball buttons. Green Soccer games were sold in Germany, Switzerland and other countries outside the US.[9]
Two printings of the leaflet have been found: an English one coded 1052-0920(A), and a four-language one in English, German, French and Italian coded 2678-0920, both printed in Hong Kong in 1978.[2][10] Mattel repaired or replaced faulty games through the Mattel Electronics Repair Center in Hawthorne, California: free within 90 days, and for a $10 charge up to a year from purchase.[11]
The older Hockey that Mattel sold outside the USA runs the same program as Soccer.[4]
Hardware
[edit | edit source]| Part | Detail |
|---|---|
| Microcontroller | National Semiconductor MM5799 (COPS I) die, marked MM4799 C NDC, bonded directly to the board under a plastic cover. The game program is in its mask ROM. |
| Other logic | A 4001 and a 74154, also bonded to the board. The 74154 selects the display digits and LEDs and drives the speaker. |
| Display | LEDs behind the pitch overlay; two-digit seven-segment LED readout behind a red window below the pitch |
| Controls | Four arrow keys, two KICK keys, 1-OFF-2 slide switch |
| Power | One 9 V battery on a snap connector, under a sliding door in the back |
From MAME's notes on the game,[4] Sean Riddle's work on the MM5799,[5] and Mattel's leaflet.[2][7]
MAME describes Soccer as "same hardware as Basketball", and gives the Basketball board as PCB MA 6017/18/19 with the MM5799 die, a 4001 and a 74154 all bonded to it, a two-digit seven-segment display, a set of single LEDs and two-bit sound.[4] Sean Riddle, who decapped the chip, notes that in these games the die sits on the board under a plastic cover and that the bond wires underneath are very easy to break. The die is marked MM4799 although the part is an MM5799, which has 1.5 K of ROM and 96 four-bit words of RAM.[5]
National's 1977 data sheet rates the MM5799 for 7.9 V to 9.5 V between its supply pins, drawing 12 mA typically and 18 mA at most, not counting what its outputs drive.[12] No schematic, parts list or photograph of an opened Soccer board has been found, so the supply arrangement between the battery and the chip is not documented.
Because the program is held in the microcontroller's own ROM, and the die is bonded to the board, there is no replacement chip. A damaged die means a donor board from another Soccer.[4][5]
The game
[edit | edit source]The 1-OFF-2 switch turns the game on and sets the speed. At 1 the defence moves at normal speed and the goalkeeper at twice that; at 2 the defence is twice as fast as at 1 and the goalkeeper twice as fast again. The attacker is a bright blip, the five defenders are dimmer blips, and the goalkeeper is a bright blip in front of the goal. A game is two 45-minute halves on a fast clock, about 8 minutes of real time, and the readout shows 45 when the game is switched on.[8] Ticks, whistles, a beep and a victory tune mark the play.[6]
Batteries and power
[edit | edit source]Soccer takes one 9 V battery on a snap connector. Press down on the centre of the battery door in the back and slide it out.[7] Mattel's leaflet says that when the player blips or the scoreboard start to misbehave, the battery is wearing out, and recommends alkaline batteries.[7] The leaflet mentions no mains adaptor.[7]
Take the battery out for storage. Leaked cells corrode the snap and its wires; see Battery Explosion, Capacitor or Corrosion Damage.
Repair
[edit | edit source]Soccer has its own repair guides:
- Mattel Soccer General Maintenance: the battery and snap, the keys and switch, opening the case and the exposed chip.
- Mattel Soccer Troubleshooting Guide: normal behaviour that looks like a fault, a symptom table, and checks with a meter.
- Mattel Soccer Capacitor Replacement Guide: what is known about the board's capacitors and how to record your own.
What is known about repairing it:
- No service manual, schematic or parts list has been published. The leaflet is the only Mattel document found.[2]
- The MM5799 die and its bond wires sit under a plastic cover on the board. Do not lift or press on it.[5]
- A Basketball, the same hardware, had its die damaged by a battery connected the wrong way round.[5][4] Fit the snap squarely and do not brush a battery across it.
Documentation
[edit | edit source]Mattel's English instruction leaflet, code 1052-0920(A), ten pages:[2]
Download: Mattel Electronics Soccer Instructions 1052-0920.pdf
The four-language leaflet, code 2678-0920, is on the Internet Archive.[10]
Related pages
[edit | edit source]- Mattel Soccer General Maintenance
- Mattel Soccer Troubleshooting Guide
- Mattel Soccer Capacitor Replacement Guide
- Mattel Basketball and Mattel Hockey, the same hardware
- Mattel Sub Chase, another Mattel LED handheld of 1978
- Category:Mattel Electronics
