Macintosh Plus BlueSCSI Installation

The Macintosh Plus has no internal hard disk; its only SCSI connection is the DB-25 port J3 on the back of the logic board.[1][2] BlueSCSI, an open-hardware board that presents disk image files on a microSD card to the Mac as SCSI drives, is a documented replacement for a failed or missing external SCSI hard disk.[3] It works on the Plus with two extra requirements: a configuration file that selects BlueSCSI's Mac Plus mode, and a source of power, because the Plus does not supply SCSI termination power.[1][4]

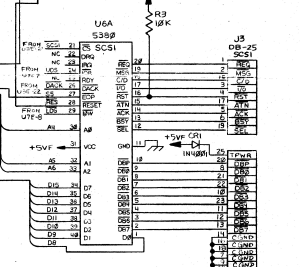

Apple left termination power off the Plus "because of power supply limitations": pin 25 of the Plus SCSI connector, TPWR on other Macs, is not connected.[5] The logic board schematic still shows the circuit. A diode, CR1 (1N4001), is drawn from the +5 V supply to J3 pin 25, and the same drawing lists CR1 as "not used".[2] Fitting that diode is a well-known owner modification that lets a BlueSCSI run from the Mac with no separate power lead.[6][7]
Symptoms
[edit | edit source]- A BlueSCSI plugged into the Plus shows no lights, or lights but the Mac will not start from it.[7]
- The Mac shows a disk icon with a flashing question mark: it has found no bootable system on the disk image. An image made by or for a Mac emulator often lacks the SCSI driver a real Mac needs.[4]
- A Plus with the early ROMs 342-0341-A or -B (ROM HI) and 342-0342-A (ROM LO) hangs at start-up if a SCSI device is connected but switched off. Apple's instruction is to switch the SCSI device on before the Mac.[8] See Macintosh Plus Troubleshooting#SCSI.
- The LED on the BlueSCSI's Raspberry Pi Pico board flashing five times means it cannot see the SD card; three flashes means it found no valid disk images.[4]
Safety
[edit | edit source]The USB-powered method needs no tools and the Mac stays closed.[4]
Warning: fitting the diode means taking the logic board out, so the cover comes off and the CRT must be discharged first. Apple warns that the machine contains high voltage and a high-vacuum picture tube, and says never to use a grounding wrist strap until after the CRT has been discharged.[9] See CRT Discharge Procedure. Apple also warns that the edges of the metal chassis may be sharp.[10]
Tools and parts
[edit | edit source]- A BlueSCSI v2 made for a DB-25 port. The DB-25 model's board is only as wide as the connector, and its termination is always on.[11]
- A microSD card, Class 10 or better, formatted exFAT (preferred, allows larger images) or FAT32.[3][4]
- For USB power: a USB power adapter rated at least 1 A and a micro USB cable for the Pico board.[4]
- For the diode: a 1N4001 (50 V, 1 A), which is the part on Apple's schematic, or another 1 A diode with a similar or higher voltage rating.[2][6] Dan Schnur used a 1N5819 Schottky diode for its lower forward voltage drop.[7]
- For opening the case: a Torx driver long enough to reach the screws, the case pull-apart tool, and a CRT discharge tool.[10][9] Soldering iron, solder and side cutters.
Procedure
[edit | edit source]Prepare the SD card
[edit | edit source]- Format the microSD card exFAT or FAT32. If the card later gives trouble, BlueSCSI recommends reformatting with the SD Memory Card Formatter tool using its "Overwrite format" option.[3][4]
- Create the configuration file. At ini.bluescsi.com, click the Mac Plus preset and download the file, or write a plain text file named
bluescsi.inicontaining the two lines below.MacPlusis BlueSCSI's preset for "Apple Macintosh Plus and similar" and sets its quirks and timing for that machine.[12][13][7][SCSI]
System = MacPlus
- Copy
bluescsi.inito the root of the card. On Windows, check that it has not been saved asbluescsi.ini.txtwith the extension hidden.[1][4] BlueSCSI's debug logging does not work withSystem=MacPlus.[1] - Copy a disk image to the root of the card. The file name sets the device:
HDfor a hard disk, then the SCSI ID (0 to 7, 1 if left out), the LUN, an optional sector size, and.hdaas the extension. Text after the sector size is ignored, soHD10_512.hdaandHD50_512 System 6.0.8L LC.hdaare both valid. Names are limited to 64 characters.[3] - Use a ready-made image from the BlueSCSI Images page, or one made with BlueSCSI's Disk Jockey tool. An image Schnur first tried would not boot his Plus; an image he found for the Plus in the BlueSCSI image library, renamed
HD0_512-1GB-MacPlus-6+7.hda, booted at once.[7][4] - Make sure at least one image file is on the card before the BlueSCSI is first powered. With no image files it runs in raw mode, offering the whole card as one disk, and the Mac may then format the card so that a modern computer can no longer read it.[3]
Power option A: USB
[edit | edit source]- With the Mac switched off, plug the BlueSCSI into the DB-25 SCSI port.[1]
- Connect a 1 A USB power adapter to the USB port on the Pico board.[4]
- Power the BlueSCSI before switching the Mac on. This is Apple's rule for any SCSI device on a Plus with the early ROMs listed above.[8]
Power option B: fit the CR1 diode
[edit | edit source]
Read this first. On the Macs that do have TPWR, Apple provides the line "for powering termination resistors only, not for powering SCSI devices", and it left the line off the Plus because of power supply limitations.[5] The diode makes the Plus's own +5 V supply power the BlueSCSI. Owners who have fitted it report it working.[6][7][14] One owner on TinkerDifferent reported weak speaker sound and then a machine that would not start some boots after fitting a 1N4007 in this position. Other members had no trouble with the same modification, and the thread did not find the cause.[14] If the analog board's +5 V output is already marginal, put it right first (Macintosh Plus Low Voltage Repair) or use USB power.
- Switch off and unplug the Mac. Remove the battery compartment cover, then the reset/interrupt switch if one is fitted.[10]
- Remove the case screws, including the one in the battery compartment, and gently pry off the cover with the pull-apart tool.[10]
- Discharge the CRT. See CRT Discharge Procedure.[9]

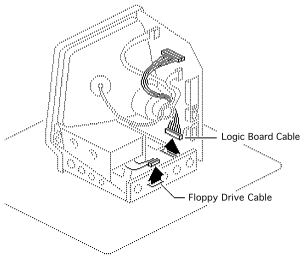

- Disconnect the floppy drive cable and the logic board cable from the logic board.[9]

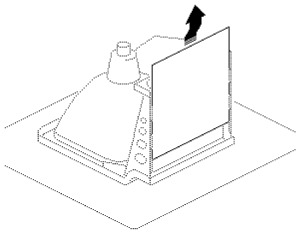

- Pull back on the top of the logic board and carefully slide it out. Take care not to damage the SIMMs, especially the larger DIP SIMMs that some boards carry.[9]

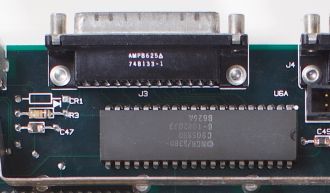

- Find CR1 on the component side, just behind the DB-25 connector J3.[6] In the lead photo it is below the left-hand end of J3, beside R3 and C47.
- Fit the diode with its band at the end marked by the bar of the diode symbol printed beside CR1 (the right-hand end in the lead photo). On Apple's schematic the anode goes to +5VF and the cathode to J3 pin 25, TPWR.[2]
- Solder both leads and trim them.[6][7]
- Slide the logic board back into its rails, reconnect the logic board cable and the floppy drive cable, and refit the cover.[9][10]
- Plug the BlueSCSI into the SCSI port with no USB lead connected.[7]
Testing
[edit | edit source]- The PWR LED on the BlueSCSI lights when the board has power.[4]
- Switch the Mac on. It should start from the image; the ACT LED blinks when the Mac reads or writes the emulated disk.[4][7]
- Every time the BlueSCSI powers up it writes
log.txtto the root of the card, recording the voltage the Pico board sees and the disk images it found. Read it on a computer if anything is wrong; it is overwritten at the next power-up.[4] - A flashing question mark means the image has no usable system or lacks a SCSI driver; try a ready-made image.[4]
Revision notes
[edit | edit source]- SCSI upgrade boards for the Macintosh 128K and Macintosh 512K, such as the Dove MacSnap and the Levco MonsterMac, use Macintosh Plus ROMs and work with the same Mac Plus configuration file.[1]
- BlueSCSI's documentation describes a separate modification, the Clipper Plus, that adds an internal 50-pin SCSI connector to the Plus.[1]
Related pages
[edit | edit source]- Macintosh Plus
- Macintosh Plus Troubleshooting
- Macintosh Plus Low Voltage Repair
- Macintosh Plus Power Supply Repair
- Macintosh Plus Service Source
- Apple SCSI cables and terminators
- Hard Drive Maintenance and Repair
- CRT Discharge Procedure
