PowerBook 180 Troubleshooting
.jpg)

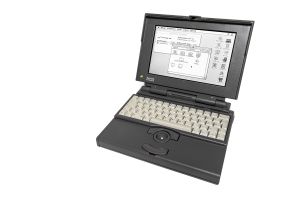

Fault-finding on the active-matrix PowerBook 180 and the two colour models, the 180c and the PowerBook 165c, follows Apple's Service Source charts. The 180 shares Apple's 160/165/180 symptom charts with the PowerBook 160, and the charts that apply to all three greyscale machines are set out on PowerBook 160 Troubleshooting. The 180's own display entries come first, then the charts from the 165c/180c Service Source. Apple's charts work at module level: try the cures in the order given, test after each, and refit the original part before trying the next.[1][2]
Before you start
[edit | edit source]- Check the main battery with a meter on the 10 V DC range. If it does not read above 5.7 V, recharge it, and replace it if it will not recover.[2]
- Check the adapter: 7.5-7.9 V between the inside (positive) and outside of the plug. Replace it if it reads outside that range.[2]
- On a 165c or 180c, make sure the adapter is the 24 W model, M5652, marked "24W".[2]
- Reset the power manager when a good battery and adapter will not start the machine, or it will not restart after a crash. Remove the adapter and battery for 3-5 minutes, refit them and switch on. If that fails, remove them again for 3-5 minutes, then hold the reset and interrupt buttons down together with two paper clips for 5-10 seconds before refitting and switching on.[2][1]
- Check the backup battery (160/165/180 Service Source): set the time, shut down, remove the main battery and adapter for 10 minutes, and switch on. If the time is lost, leave the machine on the adapter for 48 hours and replace the backup battery if that does not help.[1]
- Test a battery in the external recharger: a yellow LED means charging and green means ready. No light means the charger is unplugged or the battery, adapter or charger is faulty.[2]
PowerBook 180 display
[edit | edit source]The 180's active-matrix panel follows different rules from the 160 and 165's FSTN panel. Apple restricted the display and its backlight bulb to its central repair centre (CPRC) and international repairers; other service providers returned the computer to Apple.[1]
| Symptom | Action |
|---|---|
| Pixels always white (voids) | Replace the display if there are more than five voids, or two or more within one inch of each other[1] |
| Pixel always black | Replace the display[1] |
| Row or part row never comes on (white line) | Check cables; replace the display cable; replace the display and install System Enabler 1.01; replace the interconnect board; return the computer to Apple[1] |
| Row or part row always on (black line) | Check cables; replace the display cable; replace the interconnect board; replace the display[1] |
| Thin white line always on across the middle | Replace the display. On the 160 and 165 this is normal[1] |
| Brightness not uniform | Replace the display. On the 160 and 165 this is normal[1] |
| Very light or white picture | Adjust contrast; check the display cable, inverter, interconnect, daughterboard and motherboard connections; replace the inverter board, interconnect board, display cable, daughterboard and motherboard; then the display[1] |
| Backlight does not light | Check the cables are not pinched or cut; check connections; replace the inverter board, inverter cable, interconnect board, display cable, daughterboard and motherboard; then the display[1] |
| No picture, machine otherwise runs | Adjust contrast; check connections; connect the adapter; replace the inverter board, interconnect board, display cable, daughterboard and motherboard; then the display[1] |
| Flicker, two black lines, or the picture going dark, changed by squeezing the right side of the bezel | Fit Apple's shim to the display cable. Do not fit one to a cable stamped 936-0108[1] |
Tunnel vision
[edit | edit source]A dark vignette that grows from the corners after the 180 has been running, and clears after a few hours off, is the Hosiden panel fault known as tunnel vision. MacDat lists the 180 among the affected machines; the colour 180c is not affected.[3][4] Owners' baking results and the precautions for refitting the panel are on PowerBook 180.
| Symptom | Likely cause | Action |
|---|---|---|
| Corners darken after minutes or hours of use, clear after the machine is off for a while | Tunnel vision in the Hosiden panel | Bake the bare panel at about 100 °C; see PowerBook 180[3][4] |
| Corners still darken after about half an hour following a bake | Bake too short or too cool | croissantking's advice is to bake it again for longer at the right temperature[4] |
| Horizontal or vertical stripes after refitting a baked panel | Panel not aligned or not clamped to its board | Refit, pressing every tab down firmly[4] |
| Faint ghost of a window that was left on screen | Image persistence | Leave the PowerBook control panel's sleep and dimming enabled[4] |
165c and 180c
[edit | edit source]Startup
[edit | edit source]| Symptom | Action |
|---|---|
| Eight-tone error chord after the startup chord (RAM failure) | Reseat and then replace the PSRAM card; replace the daughterboard; replace the motherboard[2] |
| Four-tone error chord (hardware failure) | Disconnect the hard drive data cable and restart; if it starts normally, reconnect and retest, then replace the drive. Do the same with the floppy drive cable and drive. Then replace the motherboard[2] |
| Checkerboard pattern, no startup chime | Reseat and then replace the RAM card; replace the daughterboard; reseat the display cable[2] |
Power
[edit | edit source]| Symptom | Action |
|---|---|
| Blank screen, computer does not respond | Restart; connect the adapter and restart after 3-4 minutes; try a good charged battery; check the interconnect board, daughterboard and motherboard connections; reset the power manager; replace the keyboard, interconnect board, daughterboard and motherboard; then the display[2] |
| Control panel settings change when the main battery is removed | Check cables; replace the interconnect board, daughterboard and motherboard[2] |
| Battery desk accessory does not show the charger connected | Normal with a fully charged battery. Otherwise check the charger connection; try a good battery and adapter; check the battery thermistor cable; replace the motherboard[2] |
| Low-power warning | Recharge or connect the adapter; use low-power peripherals; on a 165c remove external devices or connect the adapter, on a 180c remove external devices; try a good battery and adapter; replace the motherboard[2] |
| Runs from the wall but not from a battery that tests good | Reseat the battery so it meets the motherboard contacts; if the motherboard has a removable fuse, replace it; replace the motherboard[2] |
| Will not start with the battery removed or flat | Check the adapter is the 24 W model; charge the battery; replace the adapter[2] |
| 180c switches on, then off as the screen lights | Wrong adapter: fit the 24 W M5652[2] |
Video
[edit | edit source]On the 165c, a thin white line across the middle, rainbow colours at extreme viewing angles, uneven brightness and a display that stops working below about 5 °C or above 40 °C and then recovers are normal. On the 180c a thin white line or uneven brightness means the display should be replaced.[2]
| Symptom | Action |
|---|---|
| Row or part row never on or always on | 165c: check cables; replace the display cable, display, interconnect board. 180c: check cables; replace the display cable, interconnect board, then the display[2] |
| Very light or white picture | 165c: adjust contrast. Check the display cable, converter, inverter, interconnect, daughterboard and motherboard connections; replace the converter board; on a 180c replace the inverter board; replace the interconnect board and display cable; then the display[2] |
| No picture, machine otherwise runs | Adjust contrast and backlight (165c) or backlight (180c); check connections; connect the adapter; replace the converter board, the 180c's inverter board, the interconnect board, the converter-to-inverter cable, the display cable, the display, the daughterboard and the motherboard[2] |
| Backlight does not light | Check the cables are not pinched or cut; check connections; replace the converter board, the 180c's inverter board, the converter-to-inverter cable and the interconnect board; then the display, daughterboard and motherboard[2] |
| Screen goes blank | Press a key to wake it; check the display cable; reseat and then replace the daughterboard[2] |
| Pixel always white or always black | 165c: replace the display. 180c: Apple does not replace a display for subpixel faults, which it accepts in a panel with 921,000 transistors[2] |
Owners' reports for the colour displays:
- Leaking capacitors on the 180c's Sharp LQ9D01 display board cause vertical banding. BajaTym's 180c had heavy banding from them. After recapping, alternating white columns from boot were traced to the flex-to-PCB joints along the top edge of the panel, where a swab or slight pressure changed the picture.[5] The capacitor list is on PowerBook 180 Capacitor Replacement Guide.
- Yoda had a dead or uniformly grey screen at power-up and then broken vertical lines while booting on a 180, cured by replacing the main interconnect cable. He describes these cables as a common failure on the 100 series, stressed each time the machine is opened.[5]
- On an ageing 165c display, Yoda reports that brightness and contrast are unstable at power-up and take a minute or so to settle, and ghosting from high-contrast edges worsens. He finds the colour panel less prone to ghosting than the greyscale ones. akator and Yoda regard some ghosting as normal for passive-matrix screens.[6]
Drives and peripherals
[edit | edit source]| Symptom | Action |
|---|---|
| Floppy initialisation fails, or read, write or copy errors | Try a good disk; fit the inverter shield if it is missing; check the cable; replace the cable and drive[2] |
| Disk ejects while booting, flashing X | Try a good system disk; check the trackball or mouse button is not stuck; check, then replace, the floppy cable and drive; replace the motherboard[2] |
| Disk will not eject | Hold the mouse button down while switching on; push a straightened paper clip into the hole beside the drive; then check and replace the cable, drive, daughterboard and motherboard[2] |
| Internal hard drive does not work | Disconnect external SCSI devices; check the cable; reinitialise with HD SC Setup; replace the cable, drive and motherboard[2] |
| Will not boot with an external SCSI device connected | Switch the device on first; check cables; terminate both ends of the chain with Apple terminators; check the SCSI ID is unique[2] |
| Trackball cursor does not move | Restart; check cables and connections; try a low-power mouse, and if it works replace the trackball or keyboard; replace the interconnect board, daughterboard and motherboard[2] |
| No response to any key | Reset the power manager; check the keyboard and interconnect connections; replace the keyboard, interconnect board and daughterboard[2] |
| No sound from the speaker | Check the volume setting and that nothing is plugged into the sound jack; check the speaker, interconnect, daughterboard and motherboard connections; replace the interconnect board, daughterboard and motherboard[2] |
| Screen blanks and the machine shuts down every few minutes | Adjust the sleep delays in the control panel or connect the adapter[2] |
