PowerBook 5300 Troubleshooting
.jpg)

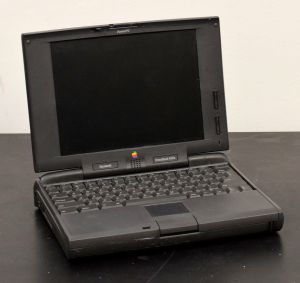

Fault-finding for the PowerBook 5300 series and the PowerBook 190. The tables follow Apple's symptom charts in the PowerBook 190/5300 Series Service Source, which work at module level: try the cures in order, test after each, and refit the original part before moving to the next.[1] Community findings are added under the symptoms they explain.
Before you start
[edit | edit source]- Remove the battery and unplug the adapter before opening the case; Apple says these machines carry the highest voltage of any PowerBook.[1]
- Measure the adapter: 21.6-26.4 V between the inside and outside of the plug.[1]
- Measure the battery: about 14 V charged, 7.8 V flat.[1]
- Check that the plug sits firmly in the power jack and does not cut out when the cable moves.[2]
- On a 5300, a machine without enough power to start makes only the click of the power button.[1]
Power
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Will not power up; sleep light on continuously | Backup battery power interrupted, power manager hung | Hold the reset button on the back for 10-20 seconds; repeat three or four times if needed[1] |
| Will not power up | Adapter, battery, power supply board, logic board | After the reset: try a known-good adapter and a charged battery; connect the adapter and restart after 3-4 minutes; replace the power supply board (5300 only), then the logic board[1] |
| Only the green sleep light, otherwise dead ("green light of death") | Hung power manager; failing capacitors on the DC/DC board; poor jack joint | Press the reset button; owners report that this clears it on a healthy machine. If it returns, check the jack and recap the power supply board. A cracked jack joint can pass enough current to light the LED but not to run the machine[3] |
| Screen blank, computer does not respond | Power manager, battery, fuse, adapter, cables, keyboard, boards | Apple's order: reset button as above; restart; remove the adapter and battery and restart after 3-4 minutes; check the adapter cable; try a charged battery; test the logic board fuse for continuity; try a known-good adapter; reset the power manager; check all logic board cables; replace the keyboard, the power supply board (5300 only), the logic board[1] |
| Runs on the adapter but not on a battery that measures within tolerance | Power manager, battery contacts, battery, adapter, boards | Reset the power manager; reseat the battery; try a known-good battery and adapter; replace the power supply board (5300 only), then the logic board[1] |
| Low-power warning | Discharged battery, peripherals, jack | Recharge; disconnect peripherals; reduce drive, sound and backlight use; try a known-good battery and adapter; inspect the power jack for a bent pin or looseness and replace the logic board if it is damaged; then the power supply board and logic board[1] |
| Loses power when the cable moves; crackly chime when plugged in | Cracked solder joints on the power jack | Reflow the jack's three through-hole joints; owners add solder on the top side and glue the jack to the board[2][3] |
| Adapter connected but the Control Strip does not show it | Connection, adapter, logic board | Check the plug; try a known-good adapter; replace the logic board[1] |
| Shuts down then powers straight back up when Shut Down is chosen on AC power | PRAM, power manager | Reset PRAM; then remove the adapter, battery and backup battery for 15 minutes[1] |
| Control Panel settings lost after the main battery is removed | Backup battery or its cable | Check the keyboard and backup battery cables; replace the backup battery; then the logic board[1] |
The power supply board can also be the cause when a machine chimes and then shows nothing; starlite, who maintains MacDat's capacitor lists, found the capacitors on two working boards already slightly bulged.[3] MacDat's view is that a recap can revive a dead 5300 once corrosion and a broken power jack have been ruled out.[4] Values are on PowerBook 5300 Capacitor Replacement Guide.
Startup
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Eight-tone error chord after the startup chord | RAM card | Remove the RAM card and restart; if it starts, refit and retest; reseat the card; replace it; then the logic board[1] A card that is not seated can stop the machine booting, and a card with a failed chip can stop it entirely[3] |
| Four-tone error chord after the startup chord | PRAM, floppy, hard drive | Reset PRAM; remove the floppy drive from the bay and restart; replace the floppy mechanism; unplug the hard drive cable and restart; replace the hard drive; then the logic board[1] |
| Startup fails with a minimal System Folder and System 7.5.2 | Old enabler | Use System Enabler 1.2.1 or later[1] |
| Machine chimes several times and the screen stays black, intermittent with pressure on the case | Boards and cables not seated after earlier repairs | Reseat the display board, DC board and RAM card; one owner found most connectors loose on a machine someone had opened before[3] |
Apple's startup flowchart:[1]
- Reset the power manager and press the power button.
- No startup tone and no picture: check the keyboard and display cables, then the keyboard and logic board. Picture but no tone: check the volume and cables, then the speaker and logic board. An abnormal tone: use the startup chart.
- No grey screen with a pointer: check the display and inverter cables, then the display and backlight cables, inverter, display and logic board.
- A flashing question mark: reset PRAM; boot from Disk Tools; reinstall the system if the drive appears, or reformat it with Hard Drive Format if it does not; then the hard drive cable, drive and logic board. If the machine stops before the desktop, boot with extensions off and update the driver.
- If the trackpad and keyboard do not work: reset PRAM, check the cables, then the trackpad, keyboard and logic board.
- Initialise a known-good floppy disk; if it fails, replace the floppy cable, then the drive.
Sad Mac and chime codes are decoded on Sad Mac Error Codes.
Video
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| Row of pixels always on or never on (active-matrix display) | Cables, display, logic board | Check the display and backlight cables; replace the display, then the logic board[1] |
| Vertical lines or no picture, changing as the display is moved | Display ribbon cable damaged at the hinge | Check the ribbon for pinching at the hinges[5] Wikipedia records ribbon cable failures giving vertical lines or a dead display among the 5300's problems[6] |
| Display very light or totally white | Settings, connections, inverter, display | Adjust contrast and brightness; check the cable, inverter and logic board connections; replace the inverter board, display, logic board[1] |
| Torisan colour display (5300cs, 190cs) shows only bright orange; contrast and brightness buttons erratic | Residue round the display board capacitors; ageing capacitors | One owner cleared the orange screen by cleaning round the display board capacitors with isopropyl alcohol; the buttons stayed erratic and he planned to replace the capacitors[7] |
| Display stopped working or dimmed but is fine now | Temperature (passive displays) | 190, 5300 and 5300cs: normal below 0 °C or above 50 °C; let it warm up for 30 minutes, and replace the display if it persists. 5300c and 5300ce: replace the display[1] |
| Backlight does not light | Settings, backlight cable, inverter | Adjust contrast and brightness; check the backlight cable and that no cable is pinched or cut; replace the inverter board, display, logic board[1] |
| No picture, computer appears to work | Sleep, settings, connections, inverter, display | If the sleep light blinks and the machine is not asleep, reset the power manager. Insert a floppy and press Command-E to confirm the machine is running; adjust contrast and brightness; check the connections; connect the adapter; replace the inverter, display, logic board[1] |
| Thin white line across the middle of the screen | Normal on passive displays | Normal on the 190, 5300 and 5300cs. On the 5300c and 5300ce, change the desktop pattern; replace the display if the line stays[1] |
| External monitor shows nothing | Cable, video board | Check the cable; reseat, then replace, the video board[1] |
| External monitor rolls or is distorted | Monitor or video board | Test the monitor on another computer; replace the video board[1] |
| Sleep light will not come on | Power off, power manager, inverter | Check the machine is asleep and not off; reset the power manager; replace the inverter[1] |
Sound, floppy and hard disk
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| No sound from the speaker | Volume, headphones, display cable, inverter, speaker | Set the volume above 0; unplug any external speaker; check the display cable and inverter board connections; replace the display cable, inverter board, speaker, logic board[1] |
| Floppy drive in the bay does not work | Disk, the cable inside the drive case, drive, logic board | Try a known-good disk; check, then replace, the floppy drive's internal cable; replace the drive, then the logic board[1] |
| Disk will not eject | Mechanism, cable, drive | Hold the trackpad button while switching on; use a paper clip in the hole beside the slot; then the cable, drive and logic board[1] |
| Disk ejects at boot with a blinking X | System disk, locked disk, trackpad or keyboard, cable, drive | Try a known-good system disk; check the disk is not locked and the trackpad button and keyboard work; then the cable, drive and logic board[1] |
| Internal hard drive does not spin up | Adapter, SCSI devices, cable, driver, drive | Connect the adapter; disconnect external SCSI devices; check and replace the hard drive cable; reinitialise with Hard Drive Format; replace the drive, then the logic board[1] |
See Floppy Drive Repair and Hard Drive Maintenance and Repair.
PC Cards, infrared and peripherals
[edit | edit source]| Symptom | Probable cause | Action |
|---|---|---|
| PC Card will not eject | Sleep, blocked slot, damaged card | Make sure the machine is not asleep and the slot is clear; use a paper clip in the hole next to the slot; check the card is not warped; replace the PC Card cage[1] |
| PC Card inserted but not on the desktop | Card, cage, logic board | Try the other slot; then the card, cage and logic board. Modem and network cards may not appear on the desktop[1] |
| Machine with a PC Card hangs or slows during floppy access | Logic board | Replace the logic board[1] The REA program covered freezes with high-power PC Cards and a device in the expansion bay[8] |
| Infrared does not work | Window, missing board, cable | Clean the infrared window. On a 190, check that an infrared board is fitted by looking for its white flex cable over the expansion bay with the keyboard off; check the cable; replace the cable, then the board[1] Apple warns that plugging the infrared cable into the logic board crooked can blow a soldered fuse on the board[8] |
| Cursor does not move with the trackpad | Power manager, connections, trackpad, keyboard | Shut down, remove the adapter and battery for a minute; reset the power manager; check the trackpad, keyboard and logic board connections; plug in a low-power mouse to tell trackpad from keyboard; then the logic board[1] |
| Cursor erratic or intermittent | Dirty pad, more than one finger, connections | Use one finger pointing straight down; clean the pad with the machine off; check its connections; replace the trackpad, keyboard, logic board[1] |
| No response to any key | Power manager, keyboard cables | Check the computer is on; reset the power manager; disconnect and reconnect the keyboard cables; replace the keyboard, then the logic board[1] |
| Will not boot after an external SCSI device is connected | Termination, power order, ID | Check termination; switch the device on first; check the cable and that its SCSI ID is unique[1] The 5300 does not supply SCSI termination power[9] |
| Printer, network or other serial device problems | PRAM, settings, cables | Reset PRAM; check the Chooser and control panel settings and the cables; then the logic board[1] |
| In SCSI disk mode, no icon until the host has booted, or a crash when the host shuts down | SCSI ID, cable | Give the PowerBook a unique SCSI ID; check the disk mode cable; then the logic board[1] |
| Problems with the password security feature | Software | Install System 7.5 Update 2.0, which includes Password Security 1.0.3 (Apple Knowledge Base article 19358, as quoted by Low End Mac)[9] |
Things that are not faults
[edit | edit source]- The screen blanks and the machine sleeps every few minutes on battery: system sleep. Adjust the sleep delays or connect the adapter.[1]
- Applications slow down after a few seconds: system rest.[1]
- A single startup chime during a PRAM reset, followed by a dark screen and a steady green sleep light: normal on these machines; press the reset button.[1]
Related pages
[edit | edit source]- PowerBook 5300
- PowerBook 190
- PowerBook 5300 General Maintenance
- PowerBook 5300 Capacitor Replacement Guide
- PowerBook 5300 and 190 Repair Extension Program
- Capacitor Failure Symptoms
