Sharp MZ-40K Troubleshooting Guide

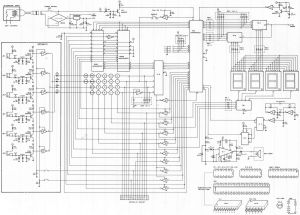

No fault-finding procedure from Sharp for the Sharp MZ-40K has been found, and no repair reports turned up in the sources consulted. The checks below follow Sharp's schematic diagram and SharpMZ's technical data, section by section.[1][2] Every MZ-40K was built from a kit, so a poor joint or a part fitted the wrong way round is as likely as a failed component.[3]
Symptoms and checks
[edit | edit source]| Symptom | Check | Parts in the path |
|---|---|---|
| Nothing lights | AC at the adaptor plug (about 10.5 to 11 V); the power switch on the volume control; 5 V at the regulator output | Adaptor, S65, 1B4B1, C10, TA78005P, C13 |
| Display dim, flickering or dead digits | 5 V unregulated rail for the LEDs; drive from the transistor arrays; solder joints at each digit | TA1, TA2, TA3, resistor arrays, GL-8P04 digits |
| Clock does not advance or keeps wrong time | AC reaching TR1 through R4, C11, D1 and R5; adaptor is AC, not DC; mains frequency setting | R4, C11, D1, R5, TR1 |
| Processor dead with good 5 V | Crystal oscillator and divider | 3.579545 MHz crystal, C14, C15, IC2, IC4 |
| No sound | Volume control; IC1 supply and input; coupling to the speaker | IC1, C1, C3, C7, C9, C4, speaker |
| A key does nothing | Key switch and its solder joints; keypad wiring to the processor and IC8 | Key switches, IC8 |
| Tune data corrupt or lost while running | RAM chips and their sockets | RAM1, RAM2 |
| Option 1 sensor not detected | Jack, sensor and input transistor; the two option jumpers | JK1 to JK6, TR3 to TR8, C18 to C23 |
Power
[edit | edit source]The adaptor must supply AC. SharpMZ gives 10.5 V AC at up to 700 mA for the European adaptor, and Japanese Wikipedia gives 11 V AC.[2][4] On the board, the 1B4B1 bridge charges C10 (1000 µF 16 V) and the TA78005P regulates 5 V, with C13 (1 µF 50 V) on its output. If the regulated 5 V is missing, check in that order: the jack and switch, the bridge, C10 and the regulator.[1]
Clock
[edit | edit source]The clock counts the mains cycles that arrive through R4, C11, D1 and R5 at TR1, so it keeps time only from an AC supply of the right frequency. Japanese Wikipedia notes that the mains frequency is entered when the clock is set.[1][4] A clock that runs fast or slow by a fixed ratio points to the wrong frequency setting; one that does not advance at all points to the TR1 input path or to a DC supply.[2]
Sound
[edit | edit source]IC1 (LM390 or LM388) drives the speaker through C4 (470 µF 16 V), with C1, C3, C7 and C9 round the amplifier and the 10 kΩ volume control at its input. The volume control also switches the power.[1][2] C4 is the largest capacitor in the audio path; the full list is in the Sharp MZ-40K Capacitor Replacement Guide.
