Sharp MZ-80B General Maintenance

From RetroTechCollection
Sharp MZ-80B

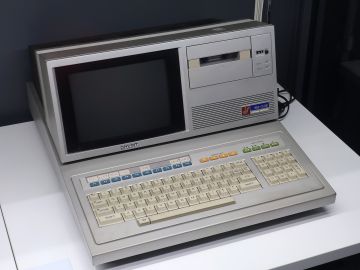

MZ-80B with its cassette deck above the keyboard (Darklanlan, CC BY 4.0)

Routine work on the Sharp MZ-80B covers the mains filter capacitors, the power supply's three regulated outputs, the software-controlled cassette deck and its belt, and the monitor. Component references and test values are from Sharp's MZ-80B service manual, which describes the 240 V, 50 Hz machine.[1]

Safety

[edit | edit source]

Warning: the MZ-80B has its mains switch, fuses, line filter and transformer inside the case, and a CRT at about 11 kV. Unplug the machine before opening it.

The power supply's primary board carries the fuses F101 and F102 (T630 mA), the line coil L101 and the two mains filter capacitors C101 and C102 (0.047 µF 250 V), which Sharp marks as safety parts.[2][3] Retro.Engineer described these as RIFA capacitors: on the MZ-80B they restored, one that had been missed during inspection exploded about ten seconds after the first power-on.[4] Check both before switching on a machine of unknown history, and replace them with capacitors rated for use across the mains. Before working near the tube or the flyback transformer, follow the CRT Discharge Procedure.[1]

Opening the case

[edit | edit source]

The service manual has no written disassembly procedure; its disassembled views show how the case, monitor, cassette deck and keyboard fit together.[5] Retro.Engineer describes the back of the case opening like a car bonnet to show the power supply, the logic board and the expansion cage, with the CRT driver board and a combined tape controller and audio amplifier board in the top housing. Removing the power supply meant taking most of the machine apart.[4]

Power supply checks

[edit | edit source]

The +12 V and +5 V outputs come from two SG3524N switching regulators (IC301 and IC401), and −5 V from an FS7905 regulator (IC201).[2] Sharp's fault charts give these intermediate voltages:[6]

MZ-80B power supply test points (Sharp fault charts)
Rail Check Expected
−5 V Across C201 (both ends) About 11 V
+12 V Pin 15 of IC301 (supply to the regulator) About 24 V
+5 V Pin 15 of IC401 (supply to the regulator) About 14 V

[6] Sharp took its waveforms with the supply loaded at 2.5 A on +5 V, 1.25 A on +12 V and 10 mA on −5 V.[6] Retro.Engineer checked the rails with the supply disconnected from the logic board before the first power-on.[4] The +12 V and +5 V outputs each have a 1 kΩ preset (VR301 and VR401), for which the manual gives no setting-up procedure.[2]

Cassette deck

[edit | edit source]

The MZ-80B's deck is driven by a reel motor and a capstan motor, with a brake solenoid and a panel solenoid, and the computer controls play, fast forward, rewind and eject.[7]

  1. Clean the heads, the capstan and the pinch roller with a soft cloth moistened with alcohol: open the cassette holder, take out the tape and press PLAY to bring the heads forward.
  2. Check the azimuth if tapes load with errors: put an oscilloscope on pin 8 of IC3102, play a TEAC test tape with a 3 kHz tone, and turn the azimuth screw for the largest waveform.
  3. Replace the drive belt if it has perished. Retro.Engineer replaced the belt on their machine, and Sharp's mechanism parts list includes a main belt and a motor pulley.[4][8]

The deck runs at 4.75 cm/s and Sharp lists C30 to C60 tapes.[1]

Loading software for testing

[edit | edit source]

Only the 2 KB IPL is in ROM, so a working machine needs the monitor and BASIC loaded from tape or disk.[9] Retro.Engineer made a boot tape by converting an MZF image of Sharp's SB-5510 tape BASIC to a WAV file with mzf2wave and recording it onto a blank cassette.[4]

Monitor

[edit | edit source]

The monitor's controls are volume, vertical hold, contrast, horizontal hold, brightness and focus; brightness and volume are also on the rear panel.[10] The manual has no adjustment procedure for the monitor; the fault chart is in the Sharp MZ-80B Troubleshooting Guide.

Capacitors

[edit | edit source]

The full list is in the Sharp MZ-80B Capacitor Replacement Guide. The power supply uses aluminium electrolytics only, while the CPU board has six 0.1 µF tantalums and the monitor board one 1 µF tantalum, C2010.[11]

Maintenance checklist

[edit | edit source]
  1. Unplug the machine and inspect C101 and C102 on the primary board.
  2. Check the outputs with the supply disconnected from the logic board, then under load.
  3. Clean the cassette heads, capstan and pinch roller and check the belt.
  4. Discharge the CRT before working near the tube or the flyback transformer.
