Sharp MZ-80K General Maintenance

From RetroTechCollection
Sharp MZ-80K keyboard

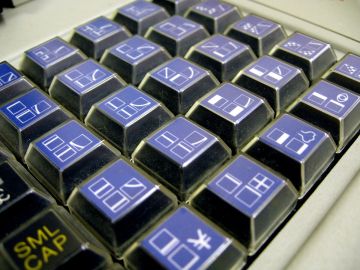

MZ-80K graphics keys, each a printed key top under a clear key cover (Marcin Wichary, CC BY 2.0)

Routine work on the Sharp MZ-80K covers opening the hinged case, checking the three power supply outputs, cleaning and aligning the built-in cassette recorder, and looking after the socketed chips on the CPU board. Component references and test values are from Sharp's MZ-80K service manual, which covers the European 220 V and 240 V machines.[1]

Safety

[edit | edit source]

Warning: the MZ-80K has its mains switch, fuse and transformer inside the case, and a CRT that runs at about 11 kV. Unplug the mains lead before opening the machine.

The power supply schematic shows the mains input SO101 through the double-pole switch SW101 to the fuse F101 (T500 mA), the capacitor C101 (0.047 µF 250 V) across the supply, and the transformer T101, which has a thermal fuse in its primary.[2] The display's anode voltage is about 11 kV with no beam current.[3] Before working near the tube or the flyback transformer, follow the CRT Discharge Procedure.

Opening the case

[edit | edit source]

The top half of the MZ-80K, with the keyboard, the picture tube and the cassette recorder, is hinged at the back and opens upwards. SharpMZ.net gives the procedure:[4]

  1. Switch off and unplug the mains lead.
  2. Turn the computer upside down and remove the four screws that hold the bottom plate.
  3. Turn it the right way up and lift the top.
  4. Lock the support hinge before working underneath.

Sharp's exploded view shows the hinge and the support arm that holds the top open, and the holder for the CPU board in the base.[5] AKIBA PC Hotline! notes the display adjustment knobs at the upper left at the back, reached with the top open.[6] Adam Wilson removed the CPU board and the power supply from his machine to clean and service them before powering it up.[7]

Power supply checks

[edit | edit source]

The supply makes +12 V and +5 V with two SG3524 switching regulators fed from about 23 V DC, and −5 V with a µA78MGU regulator on its own transformer winding.[2] Sharp's fault charts give these voltages to measure. The 220 V unit (DBOXD0004PAZZ) and the UK unit (DBOXD0005PAZZ) differ only in the AC and DC figures for the −5 V section.[8]

MZ-80K power supply test points (Sharp fault charts)
Measure Where 220 V unit UK 240 V unit
Mains Across C101 220 V AC 240 V AC
−5 V winding Orange lead 9 V AC 10 V AC
−5 V reservoir Across C201 10 V DC 11 V DC
−5 V output Across C202 −5 V DC −5 V DC
Main winding Yellow lead 20 V AC 20 V AC
Main reservoir Across C301 23 V DC 23 V DC
+12 V output Across C404 12 V DC 12 V DC
+5 V output Across C507 5 V DC 5 V DC

[8] Sharp rates the outputs at 12 V 1.6 A, 5 V 1.6 A and −5 V 0.2 A.[3] Each output has a 1 kΩ preset (VR201 for −5 V, VR401 for +12 V and VR501 for +5 V), but the service manual gives no procedure for setting them.[2] Leave them alone unless a rail is out and the rest of the supply has been checked.

C101, across the mains after the switch, is marked on the schematic and in the parts list as a safety part. In the machine Adam Wilson restored it was a polymer X/Y capacitor soldered to the power switch.[2][9][7] Use a replacement rated for connection across the mains if it is ever changed.

Cassette recorder

[edit | edit source]

Cleaning the heads

[edit | edit source]

Sharp's instructions: open the cassette holder, remove the tape, press PLAY, and clean the heads, the capstan and the pinch roller with a soft cloth moistened with alcohol. Sharp says to do this often, because dust and tape residue spoil both recording and playback.[10] To get better access to the heads, push in the two plastic lugs that stop the lid opening further; the lid then opens much wider.[4] Maurice Hawes of the Sharp Users Club found that the heads needed regular cleaning and that the PRESS PLAY contact needed an occasional rub with fine emery paper.[11]

Head azimuth

[edit | edit source]

If tapes load with errors after cleaning, check the azimuth. Sharp's procedure:[10]

  1. Connect an oscilloscope to the collector of Q3003.
  2. Play a TEAC test tape with a 3 kHz signal recorded on it.
  3. Turn the head azimuth adjusting screw for the largest waveform.

Belts, motor and protection

[edit | edit source]

The deck runs at 4.75 cm/s with a 12 V electronically governed motor.[3] Sharp's list of cassette mechanism parts gives part numbers for the main belt (94R06580KCTRM), the counter belt (94R05480KCTRM), the pinch roller assembly (94R01480KCTRM), the record/playback head (94R06080KCTRM), the erase head (94R06180KCTRM) and the motor (94R06480KCTRM), but no belt sizes.[12] The record button is blocked when the cassette's erase-protection tabs are removed or when no cassette is fitted. Sharp warns that forcing it can cause a fault.[10]

CPU board and chips

[edit | edit source]

Sharp's handling precautions for the board's MOS chips: ground yourself through a resistor of several megohms, lay chips on grounded foil, use a soldering iron with no leakage current (Sharp suggests a 6 V, 12 W iron), hold chips by the package, check the orientation before inserting them, switch off before removing them, and solder quickly.[13] All the major chips on the MZ-80K are in sockets.[11] Adam Wilson cleaned the sockets with contact cleaner and tested every 4116 dynamic RAM out of circuit; nine had failed.[7]

The memory size is set by links on the two 16-pin headers CS1 and CS2, and the RAM sits in three banks of sockets marked RAM1 to RAM3. SharpMZ.net lists the link settings for 20, 24, 36 and 48 KB.[4] Record the links before removing anything. The monitor ROM is a 2332, which can be replaced by a 2532 EPROM with no changes to the board.[4]

Keyboard

[edit | edit source]

The keyboard unit (DKEY-0005PAZZ) uses mechanical key switches, each with a separate key top and key cover.[9] Sharp's fault list for a key that does not register is poor soldering, a faulty key switch or a broken track on the keyboard board.[14]

Display

[edit | edit source]

The display controls are volume, vertical hold, contrast, horizontal hold, brightness and focus.[3] The service manual has no adjustment procedure for the display; its display section is a fault chart with waveforms.[15]

Capacitors

[edit | edit source]

The power supply's four 10 µF tantalum capacitors are the parts owners report failing. All the electrolytic and tantalum capacitors in the machine are listed in the Sharp MZ-80K Capacitor Replacement Guide. General signs of failure are in Capacitor Failure Symptoms.

Maintenance checklist

[edit | edit source]
  1. Unplug the machine, open the top and lock the support hinge.
  2. Inspect the power supply for burnt tantalum capacitors and check C101 on the mains switch.
  3. Measure +12 V across C404, +5 V across C507 and −5 V across C202.
  4. Clean the cassette heads, capstan and pinch roller, and check the azimuth if loading is unreliable.
  5. Reseat or test the socketed RAM if the machine shows memory faults.
  6. Discharge the CRT before working near the tube or the flyback transformer.
[edit | edit source]

References

[edit | edit source]
