Sharp MZ-2000 General Maintenance

From RetroTechCollection

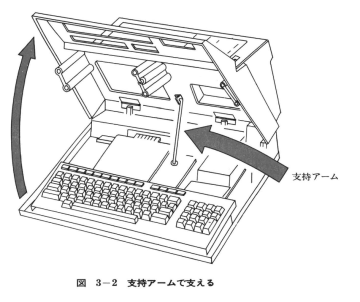

Sharp MZ-2000 upper cabinet raised on its support arm (owner's manual)
The MZ-2000's upper cabinet, with the monitor and cassette deck, lifted from the front and held on its support arm (Sharp owner's manual, figure 3-2)

Routine work on the Sharp MZ-2000 covers opening the case the way Sharp intended, Sharp's own handling precautions, the cassette deck, the power supply rails and the display unit's controls. Component references come from the circuit diagrams in Sharp's owner's manual, which is in Japanese and is hosted with a description at Sharp MZ-2000 Owner's Manual.[1] The manual has no service procedures or parts list, so the owners' reports cited below fill some of the gaps.

Safety

[edit | edit source]

Warning: the MZ-2000 has its mains wiring, transformer and power supply inside the case, and its built-in monitor runs at about 11 kV. Unplug the machine before lifting the upper cabinet.

On the power supply schematic, mains enters through the socket SO101 and the double-pole switch SW101 to the fuse F101 (T1A), the line filter L101 and the transformer T101, whose primary carries a thermal fuse. A second mains socket, wired after the switch, fuse and filter, feeds the MZ-1U01 expansion unit's own supply.[2][3] Sharp gives the picture tube's anode voltage as 11.0 kV at zero beam current, between 10.0 and 12.0 kV.[4] Discharge the tube before working near its anode lead or the display board; see CRT Discharge Procedure.

Opening the case

[edit | edit source]

The MZ-2000 opens like a car bonnet: the upper cabinet, which holds the monitor and the cassette deck, hinges up from the front.[5] Sharp's procedure, from the owner's manual:[3]

  1. Switch the MZ-2000 off and pull out the mains plug.
  2. Remove the two fixing screws on the underside below the keyboard.
  3. Lift the upper cabinet gently from the front.
  4. Draw the support arm out from the underside of the upper cabinet and set its end in the hole in the lower cabinet.

Sharp warns not to switch the machine on with the upper cabinet raised, and not to leave screws or other metal parts inside.[3] Its handling notes also say not to use or store the machine with the upper cabinet open.[6]

Inside, the CPU board sits below the raised cabinet with the MZ-1R01 graphics board, where fitted, mounted directly above it.[5][3] The MZ-1U01 expansion unit fits in the bay at the rear and takes mains for its own supply from connector G on the main power supply's primary board through its connector F; unplug F before lifting the unit out.[3]

Handling and siting

[edit | edit source]

Sharp's handling notes for the MZ-2000:[6]

  • Run it on AC 100 V. Sharp warns that a much higher or lower supply can cause faults.
  • Leave at least 10 seconds between switching off and switching on again, and do not plug in the mains lead with the power switch already on.
  • Keep the ventilation holes clear; do not stand it on carpet or bedding or cover it with cloth.
  • Clean the case with a soft cloth moistened with water or a mild detergent. Benzine and thinners can discolour it.
  • Turn the brightness control at the back well down when the same picture stays on screen for a long time, to avoid burning the screen.

Sharp rates the machine for 0 to 35 °C in use and 80 % humidity or less.[4] The power supply is rated for AC 100 V ±10 % only, so where the mains is 220 to 240 V the machine needs a step-down transformer.[4]

Cassette deck

[edit | edit source]

The deck's rewind, fast forward, stop and eject keys act directly on the motor and eject mechanism, independently of the computer, and its READ (green) and WRITE (red) lamps show when the computer is using it.[7] The deck runs at 4.75 cm/s and Sharp rates it for C15 to C60 tapes.[4]

  • Clean the record and playback head once a month. Sharp suggests a commercial cleaning tape.[6]
  • Inspect the pinch roller. Its rubber deteriorates with age and can melt; the Japanese Wikipedia article and an owner's page both report it.[8][9] If the roller has melted, clean the capstan and the tape path before fitting a replacement.
  • Check the lid's oil damper for leaks. Ohishi describes oil leaking from the damper as a trouble particular to the MZ-2000; he replaced the damper and fitted the lid from an MZ-1T01 data recorder.[10]

The deck's solenoids and motor are driven from the cassette control board, which takes 5 V, 12 V and 15 V from the power supply.[11]

Power supply checks

[edit | edit source]

The supply has two switching regulators and two linear ones. From Sharp's schematic:[2]

MZ-2000 supply rails (power circuit, figure 4-18)
Rail Regulator Fuse Adjustment
+5 V TL494CN switching regulator IC21 with Q21 and Q22, choke L21 and diode D22 (CTB24) F21, T2.0A Preset VR21 (1 kΩ) in the sense divider
+12 V TL494CN switching regulator IC42 with Q41 and Q42, choke L41 and diode D42 (CTB24) F41, T2.0A Preset VR41 (1 kΩ) in the sense divider
+15 V IC41, µPC7815H or TA78015AP – –
−5 V IC1, µPC7805H or TA78005AP, with fusible resistor FR1 – –

The output connector carries +15 V, +12 V, GND and +5 V, with −5 V on a separate lead.[2] The CPU board takes −5 V, +12 V and +5 V on its connector CN7, and passes them to the MZ-1R01 graphics board.[12] The display unit needs 12 V ±10 % at about 1.05 A.[4] Sharp's manual gives no adjustment procedure for VR21 or VR41.

Measure the rails with the machine running, on the output connector or at CN7 on the CPU board. This has to be done with the upper cabinet raised, which Sharp's manual warns against because of the risk of damage and electric shock;[3] keep hands and probes clear of the supply's mains side and of the display board. Ohishi found the supply's capacitors glued down and without visible bulging when he checked his machine's supply.[13]

Display unit

[edit | edit source]

The user controls are the volume and brightness knobs at the back of the machine.[5] The other adjustments are presets on the display board:[14]

MZ-2000 display board controls (figure 4-16)
Function Reference Value
Contrast R2002 500 Ω
Brightness R2008 250 kΩ
Vertical hold R2015 50 kΩ
Vertical size R2025 20 kΩ
Vertical linearity R2019 300 Ω
Horizontal hold L2002 (coil) –
Focus R2047 1 MΩ

The board takes 12 V through its own fuse, F01 (2 A).[14] Use a plastic trimming tool on the H-hold coil, and note each preset's position before turning it.

Expansion unit and options

[edit | edit source]
  • The MZ-1U01 expansion I/O unit has its own supply, with a transformer, a TL494CN switching regulator for +5 V and a T2A fuse.[15]
  • Extra graphics pages (MZ-1R02) are sets of eight 16 Kbit dynamic RAMs plugged into sockets on the MZ-1R01.[4][8] Oh!MZ advised its readers that eight 4116-2 chips would do the same job.[5]

Capacitors

[edit | edit source]

The electrolytic capacitors of the power supply, CPU board, display unit, cassette control board, MZ-1R01 and MZ-1U01 are listed, with the values printed on Sharp's schematics, in the Sharp MZ-2000 Capacitor Replacement Guide. General signs of failure are in Capacitor Failure Symptoms.

Maintenance checklist

[edit | edit source]
  1. Confirm the supply voltage: the MZ-2000 is a 100 V machine.
  2. Unplug, remove the two screws under the keyboard and raise the upper cabinet on its support arm.
  3. Look over the power supply, CPU board and display board for leaking or bulging capacitors and loose connectors.
  4. Clean the cassette head, and inspect the pinch roller and the lid damper.
  5. Close up and switch on. If the machine does not start, measure the four rails as described under power supply checks.
  6. Check that the IPL opens the deck lid and shows Make ready CMT with no tape inserted.[16]
[edit | edit source]

References

[edit | edit source]
  1. ↑ Sharp, MZ-2000 Owner's Manual (Japanese) (File:Sharp MZ-2000 Owner's Manual.pdf), section 4.4, circuit diagrams, printed pages 62 to 76 (PDF pages 63 to 77).
  2. ↑ 2.0 2.1 2.2 Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-18, power circuit (unit DBOXD0044PAZZ), printed page 70 (PDF page 71); also File:Sharp MZ-2000 power supply circuit (owner's manual).png: SO101, SW101, F101 (T1A), C101 and C102 (0.047 µF 125 V AC), L101 (Z0005), T101 (P0079PA) with thermal fuse T.F; second mains socket after the switch, fuse and filter; −5 V regulator IC1 (µPC7805H or TA78005AP) with FR1 and D1 (V03C); +15 V regulator IC41 (µPC7815H or TA78015AP); +12 V switching regulator IC42 (TL494CN) with fuse F41 (T2.0A), bridge D41 (S4VB10), Q41 (A770Y), Q42 (A673C), L41 and preset VR41 (1 kΩ); +5 V switching regulator IC21 (TL494CN) with fuse F21 (T2.0A), bridge D21 (S4VB10), Q21 (A770Y), Q22 (A673C), L21 and preset VR21 (1 kΩ); output connector +15 V, +12 V, GND, +5 V, and −5 V on its own lead.
  3. ↑ 3.0 3.1 3.2 3.3 3.4 3.5 Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), section 3.1, printed pages 36 to 41 (PDF pages 37 to 42): to fit options, first lift the upper part (CRT display and cassette deck): switch off and unplug; remove the two fixing screws under the keyboard (figure 3-1); lift the upper part gently from the front, draw the support arm out of its underside and set it in the hole in the lower cabinet (figure 3-2); caution: do not switch on with the upper part raised, because connecting things with the power on can damage circuit parts and there is a risk of electric shock, and do not leave screws or other metal inside; the MZ-1U01 power connector F plugs into connector G on the main unit's power supply primary board.
  4. ↑ 4.0 4.1 4.2 4.3 4.4 4.5 Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), appendix A.3, printed pages 149 and 150 (PDF pages 150 and 151): AC 100 V ±10 %, 50/60 Hz, about 50 W; operating temperature 0 to 35 °C, storage −15 to 60 °C, humidity 80 % or less; power supply outputs 5 V, −5 V, 12 V and 15 V; display: 10-inch E2728B31 tube, DC 12 V supply (12.0 V, 1.05 A, 1.2 A maximum, working range 12 V ±10 %), 11.0 kV at zero beam (10.0 kV minimum, 12.0 kV maximum), controls Volume, Contrast, Brightness, V-Hold, H-Hold and Focus; cassette: rated supplies 5 V ±5 %, 12 V ±5 % (regulated) and 15 V (unregulated), 12 V electronic-governor motor, C15 to C60 tapes, 4.75 cm/s.
  5. ↑ 5.0 5.1 5.2 5.3 MZ-80Bがグレードアップして登場！シャープの一体型PC「MZ-2000」– Sasaki Jun, AKIBA PC Hotline! (Impress), 13 April 2021—link(accessed 2026-10-21) The front of the upper case lifts like a car bonnet; the support arm under the monitor is lowered into a hole in the base to hold it; rear panel with power switch, RESET and IPL buttons, volume and brightness knobs and a DIN 8-pin colour monitor socket; the graphics board sits above the CPU board; an Oh!MZ tip that eight 4116-2 16 Kbit DRAMs can stand in for an MZ-1R02.
  6. ↑ 6.0 6.1 6.2 Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), appendix A.4, handling precautions, printed pages 151 and 152 (PDF pages 152 and 153): do not damage or trap the mains lead, and pull it out by the plug; use AC 100 V, since a very high or low supply voltage can cause faults; do not block the ventilation holes; keep away from damp, dust, direct sunlight and heaters; unplug at once if liquid or metal gets inside; leave at least 10 seconds between switching off and on, and do not plug in with the switch on; clean the case with a soft cloth moistened with water or detergent, not benzine or thinners; in a noisy environment use a line filter and keep signal cables away from mains leads; clean the cassette heads once a month, for example with a cleaning tape; the same image left on screen for a long time can burn the screen, so turn the brightness control at the back well down for long sessions; support the upper cabinet with the arm when it is raised, and do not use or store the machine with it open.
  7. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), section 2.2.5, cassette tape deck control keys, printed page 30 (PDF page 31): REW and FF (each lights an LED), STOP and EJECT act on the deck's motor control and eject mechanism directly and work whatever mode the computer is in; READ lamp green, WRITE lamp red; reset button beside the tape counter.
  8. ↑ 8.0 8.1 MZ-2000, Wikipedia (Japanese)—link(accessed 2026-10-21) The cassette deck's pinch roller material does not age well, and the rubber can melt.
  9. ↑ MZ-80B/2000エミュレータ関係, 気まぐれページ (Takky)—link(accessed 2026-10-21) The author's MZ-2000 was put away after the tape pinch roller melted.
  10. ↑ MZ-2000, Nibbles lab. シャープ博物館 (Ohishi)—link(accessed 2026-10-21) Owner's page: oil leaking from the cassette lid's oil damper is one of the troubles particular to the MZ-2000; the owner replaced the damper and fitted the lid from an MZ-1T01; a service engineer adjusted the deck, then found a shaft on the deck chassis broken, and the chassis was replaced.
  11. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-17, cassette tape deck control, printed page 69 (PDF page 70): TC9121P controller IC7; TD62003 driver IC1 for the play, fast-forward, rewind and open solenoids; supply inputs 15 V, 12 V, 5 V and GND with C23 (100 µF 25 V), C22 (100 µF 16 V) and C24 (100 µF 16 V).
  12. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-15, CPU board (5), printed page 67 (PDF page 68): connector CN6 on the CPU board to CN2 on the MZ-1R01, with +12 V, +5 V and −5 V pins; power connector CN7 with −5 V, +12 V, +5 V and GND, decoupled by C31, C32 and C33 (100 µF 16 V).
  13. ↑ MZ-2000モニタ交換計画, Nibbles lab. (Ohishi)—link(accessed 2026-10-21) Owner's account: the power supply's capacitors were not bulging and were all glued in place; according to the manual only 12 V is wired to the CRT unit; the display controller's 16 MHz clock is also the dot clock.
  14. ↑ 14.0 14.1 Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-16, CRT display control, printed page 68 (PDF page 69): input connector with sound, sync, video, GND, E and +12 V; F01 (2 A) on the +12 V input; R2002 contrast (500 Ω); R2008 brightness (250 kΩ); R2015 V-hold (50 kΩ); R2025 V-size (20 kΩ); R2019 V-lin (300 Ω); L2002 H-hold; R2047 focus (1 MΩ); flyback transformer T2002 (RTRNF2015TA); tube 2728B31.
  15. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-24, MZ-1U01 power circuit (unit DBOXD0048PAZZ), printed page 76 (PDF page 77): transformer T1 fed with AC 100 V from the MZ-2000, bridge D1 (S4VB), fuse (T2A), TL494CN IC1, +5 V output.
  16. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), section 2.1.1, printed page 15 (PDF page 16): with no tape set, the cassette lid opens and "Make ready CMT" is shown.
