Sharp MZ-2200 General Maintenance

From RetroTechCollection
Sharp MZ-2200

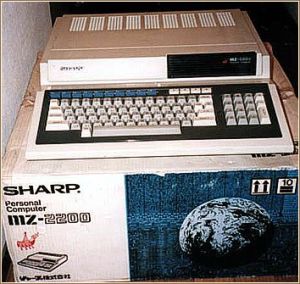

An MZ-2200 on its carton (SharpMZ.net)

Routine work on the Sharp MZ-2200 covers opening the case, siting it, its front and rear controls, the MZ-1T02 data recorder and the power supply. No Sharp service document for the MZ-2200 is known to be online. Where a step depends on Sharp's documentation, the nearest source is the MZ-2000's owner's manual, used in the Sharp MZ-2000 General Maintenance guide. The MZ-2200 is the MZ-2000's successor, with the same basic specification and full software compatibility, but no built-in monitor or cassette deck.[1]

Safety

[edit | edit source]

Warning: the MZ-2200's mains wiring and power supply are inside the case. Unplug the machine before opening it.

The MZ-2200 has no built-in monitor, so there is no picture tube inside the computer.[1] The external monitor carries its own high voltages; see CRT Discharge Procedure before opening one.

Opening the case

[edit | edit source]

The case opens like a car bonnet. Remove the fixing screws, take hold of the front of the case and lift it; the top hinges up from the front, and a support rod mounted inside the lid holds it open while you work.[2] The article does not give the number or position of the screws. On the MZ-2000, Sharp's procedure uses two screws on the underside below the keyboard; see opening the MZ-2000's case.[3] Sharp's warning for the MZ-2000 not to switch on with the case raised is good practice here too.

In AKIBA PC Hotline's photograph of an opened MZ-2200, the main board lies left of centre with its rows of memory chips, the power supply sits at the rear right under a perforated metal cover with radial electrolytic capacitors visible on its board, and the round speaker is in front of the supply.[4]

Siting

[edit | edit source]
  • Do not stand a CRT monitor on the MZ-2200. The top is not built to carry one, and the flat rear part of the top is a ventilation outlet.[1][2]
  • Leave the vent at the rear of the top uncovered.[1]

Controls and connections

[edit | edit source]
MZ-2200 controls and sockets
Place Item
Front pocket, right RESET button, IPL button, volume slider and power lamp
Rear, left to right Power switch, MZ-1T02 power socket, MZ-1T02 signal socket, digital RGB output, monochrome output
Rear, below Built-in expansion unit

[2][1] The volume control is a slider, where the MZ-2000 has a knob at the back.[1]

MZ-1T02 data recorder

[edit | edit source]

The MZ-1T02 is the only data recorder that works with the MZ-2200. It has no mains lead: a square four-pin plug takes its power from the MZ-2200 and a 16-pin plug carries the signals.[5]

  • Check the pinch roller first. It can melt with age.[5][1]
  • Clean the record and playback head. Sharp's manual for the MZ-2000 asks for the built-in deck's head to be cleaned once a month, for example with a cleaning tape.[6]
  • Plug in both cables with the MZ-2200 switched off.

The recorder's keys are rewind, fast forward, stop and eject, and its READ and WRITE lamps light while the computer reads or writes.[5]

Power supply

[edit | edit source]

The MZ-2200's supply powers the computer, the built-in expansion unit (which, unlike the MZ-2000's MZ-1U01, has no supply of its own) and the MZ-1T02.[1][5] Its circuit is not documented online. The MZ-2000's supply gives +5 V, +12 V, +15 V and −5 V, with the CPU board fed −5 V, +12 V and +5 V; these are the rails to look for, but confirm them on the MZ-2200's own wiring before measuring.[7] One owner fitted a main board said to come from an MZ-2200 to an MZ-2000 and it started, which suggests the logic boards are close.[8]

Capacitors

[edit | edit source]

What is known about the MZ-2200's electrolytic capacitors, and how to record them, is in the Sharp MZ-2200 Capacitor Replacement Guide. General signs of failure are in Capacitor Failure Symptoms.

Maintenance checklist

[edit | edit source]
  1. Unplug the MZ-2200 and the MZ-1T02.
  2. Remove the fixing screws and lift the case on its support rod.
  3. Look over the power supply, the main board and the expansion unit for leaking or bulging capacitors and loose connectors.
  4. Clean the MZ-1T02's head and check its pinch roller.
  5. Close up, reconnect the recorder and monitor with the power off, and switch on.
  6. Keep the monitor off the top of the case.
[edit | edit source]

References

[edit | edit source]
  1. ↑ 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 MZ-2000, Wikipedia (Japanese)—link(accessed 2026-10-21) Section "MZ-2200": the same basic specification as the MZ-2000 and full compatibility with it; computer, display and data recorder separated; the case is not built to carry anything heavy on top and the rear of the top is a vent; the built-in expansion unit has no auxiliary power supply; the IPL and reset buttons and the volume control, at the back on the MZ-2000, moved to a front pocket, the volume becoming a slider, with the power LED there; the IPL ROM's messages differ from the MZ-2000's; colour and monochrome CRT interfaces and a cassette interface for the MZ-1T02 only; the MZ-1T02's pinch roller melts with age.
  2. ↑ 2.0 2.1 2.2 パソコン戦国時代に第一線で走り続けた「シャープ MZ-2200」– Sasaki Jun, AKIBA PC Hotline! (Impress), 1 June 2021—link(accessed 2026-10-21) The case opens from the front like a car bonnet once the screws are removed, and a support rod fitted inside the lid holds it; front pocket at the right with the RESET button, IPL button and volume slider; rear panel from the left: power switch, power socket and signal socket for the MZ-1T02, digital RGB output and monochrome output, with the expansion unit below; the flat rear of the top can take a 10-inch LCD but is not strong enough for a 12-inch CRT monitor; the MZ-1T02 connects to dedicated sockets for signal and power.
  3. ↑ Sharp, MZ-2000 Owner's Manual (Japanese) (File:Sharp MZ-2000 Owner's Manual.pdf), section 3.1, printed pages 36 and 37 (PDF pages 37 and 38): for the MZ-2000, remove the two fixing screws under the keyboard, lift the upper part from the front and hold it on the support arm; do not switch on with it raised, because circuit parts can be damaged and there is a risk of electric shock.
  4. ↑ AKIBA PC Hotline!, "パソコン戦国時代に第一線で走り続けた「シャープ MZ-2200」" (1 June 2021), photograph of the opened case (image asharpmz3), article page.
  5. ↑ 5.0 5.1 5.2 5.3 さまざまなメーカーから数多くの機種が登場したデータレコーダたち ～シャープ編～– Sasaki Jun, AKIBA PC Hotline! (Impress), 16 January 2024—link(accessed 2026-10-21) The MZ-1T02 (19,800 yen, autumn 1983) works only with the MZ-2200 and no other recorder works with it; front keys REW, FF, STOP and EJECT, a tape counter and READ and WRITE lamps; two cables from the back, a 16-pin one for data and a square 4-pin one for power, with no AC connection; with age the pinch roller can melt, so check it first on a second-hand unit.
  6. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), appendix A.4, printed page 152 (PDF page 153): clean the cassette heads once a month; a commercial cleaning tape is convenient.
  7. ↑ Sharp, MZ-2000 Owner's Manual (File:Sharp MZ-2000 Owner's Manual.pdf), figure 4-18, power circuit, printed page 70 (PDF page 71), and figure 4-15, CPU board (5), printed page 67 (PDF page 68): MZ-2000 supply outputs +15 V, +12 V, GND, +5 V and −5 V; CPU board power connector CN7 with −5 V, +12 V, +5 V and GND.
  8. ↑ MZ-2000モニタ交換計画, Nibbles lab. (Ohishi)—link(accessed 2026-10-21) A main board said to have come from an MZ-2200 was fitted to a failed MZ-2000, and the IPL message then appeared.
