Philips CDI 450 Documentation
Two documents for the Philips CDI 450 are hosted on the wiki: the Philips service manual for the CDI 450/00, /05, /11 and /17, and the Magnavox operating instructions for the North American CDI450 and CDI550.
Service manual CDI 450/00/05/11/17
[edit | edit source]Compact disc interactive player CDI 450/00/05/11/17 is the service manual published by Philips Service & Support, Interactive Media Systems, in June 1994 (code P.S. 0694), part number 4822 725 24741. Its pages are numbered PCS 72 118 to PCS 72 148. The cover also lists the North American models, the CDI450/17 (CDI450 BK) and the CDI550 (CDI550 DV), with US service manual number 5520.[1] The hosted copy is a 36-page scan from ICDIA, watermarked by freeservicemanuals.info; the larger diagrams are scanned as two- and three-page spreads on one PDF page.[2]
Contents
[edit | edit source]| Section | Contents | PDF page |
|---|---|---|
| 1 | Detailed table of contents | 2 |
| 2.1 to 2.5 | Technical specification, connections and controls, accessories, setting up, disc play | 3 to 5 |
| 3.1 to 3.3 | Safety instructions, Philips safety guidelines for the service technician, handling SMDs and ESD-sensitive components, tools | 6 and 7 |
| 3.4 | Code numbers for standardised resistors | 8 to 10 |
| 3.5 and 3.6 | Central repair procedure for the main board, and the repair procedure in each country | 11 |
| 4.1 and 4.2 | Exploded view of the cabinet; service position with extension foil and rods | 12 and 13 |
| 5.1 | The Low Level Test and its test sequence | 14 and 15 |
| 5.2 | The Service Shell, its start-up sequence and the CD drive test modes | 15 and 16 |
| 6.1 and 6.2 | Block diagram with functional survey; list of abbreviations | 17 to 19 |
| 6.3 | Power supply unit: PCB layout and circuit diagram | 20 |
| 6.4.1 and 6.4.2 | Main panel PCB layout, tracks side and component side, with grid index | 21 |
| 6.4.3 to 6.4.6 | Circuit diagrams: microprocessor part; servo and CD decoder; CD interface and audio processor; digital video and video encoder | 22 to 25 |
| 6.4.7 | Layout of the main panel measuring pads | 26 |
| 7.1 | Short descriptions of the key components | 27 and 28 |
| 7.2 | Troubleshooting and repair | 28 and 29 |
| 7.3 | Measurements: supply voltages, clock signals, I²S interface, the 68070, the Low Level Test from a terminal | 29 and 30 |
| 8.1 to 8.4 | Parts lists: cabinet, main board, power supply; accessories and service tools | 31 to 36 |
What it does not contain
[edit | edit source]- No written disassembly procedure. Section 4 is an exploded view and a drawing of the service position only.[4]
- Nothing on the Digital Video Cartridge, which has its own service manual.[1]
- No service information inside the CD mechanism. The CDM12 is replaced as an assembly.[5]
- No component-level repair of the microprocessor, CIAP or digital video sections. Philips's procedure was to exchange the main board and return the faulty one to a central repair shop.[5]
What it settles
[edit | edit source]- The value, voltage and Philips part number of every electrolytic capacitor on the main panel and in the external power supply, and the grid position of each on the main panel.[6][7]
- The power supply circuit, its fuses and its regional part numbers.[7][6]
- The expected supply voltages at each key IC and the clock frequencies, for checks with a meter and a frequency counter.[5]
- How to start the Low Level Test and the Service Shell, and what each test step and CD error code means.[8]
Pages that cite this document
[edit | edit source]- Philips CDI 450: models, components, specifications, power supply.
- Philips CDI 450 General Maintenance: service tools, service position, clock calibration.
- Philips CDI 450 Troubleshooting Guide: diagnostics, voltages, clocks and symptoms.
- Philips CDI 450 Capacitor Replacement Guide: capacitor values, part numbers and positions.
Download: Philips CDI 450 Service Manual.pdf
Magnavox CDI450 / CDI550 operating instructions
[edit | edit source]The Magnavox CDI450 / CDI550 Operating Instructions is the 20-page owner's manual for the North American players. Its last page carries the line "©1994 Philips Interactive Media Systems" and the code 3104 125 21041.[9]
| Page | Contents |
|---|---|
| 1 to 7 | Cover, registration and welcome pages, safety precautions, important safety instructions, limited warranty, contents |
| 8 to 12 | Introduction and installation: front, side and rear of the player, the power supply and RF modulator, power connection, video and audio connections, the pointing device and installing a Digital Video Cartridge |
| 13 to 16 | Setting up and playing discs |
| 17 | Before requesting service |
| 18 | Glossary |
| 19 | Specifications |
| 20 | Supplied and optional accessories |
It has no circuit or parts information. Its specifications differ from the service manual's on power consumption (28 W and 21 W against 30 W and 23 W).[9][3]
Download: Magnavox CDI450 CDI550 Operating Instructions.pdf
Figures rendered from the service manual
[edit | edit source]-
Exploded view (section 4.1) -

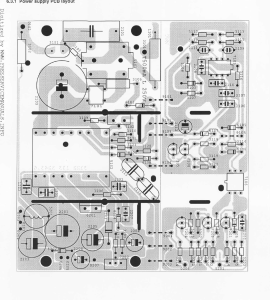

Power supply PCB layout (section 6.3.1) -
Power supply circuit diagram (section 6.3.2) -
Main panel, component side (section 6.4.2)
.png)
.png)
.png)
.png)
References
[edit | edit source]- ↑ 1.0 1.1 Philips Service & Support, Interactive Media Systems, Compact disc interactive player CDI 450/00/05/11/17, P.S. 0694, 4822 725 24741, cover (PCS 72 118): models covered, the CDI550 as a CDI450/17 with a built-in Digital Video Cartridge, "For Service of the DVC see separate Service Manual", CDM12 service code 4822 691 30343. Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ The New International CD-i Association, "CD-i Service Manuals" (retrieved 2026-10-20): the CDI 450/550 (/00/05/11/17, Roboco) service manual, file cdi450.pdf, and the note that most of the PDFs were obtained from freeservicemanuals.info.
- ↑ 3.0 3.1 Philips, CDI 450 service manual, section 1 Detailed table of contents (PCS 72 119) and section 2.1 Technical specification (PDF p. 3). Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ Philips, CDI 450 service manual, sections 4.1 and 4.2 (PCS 72 124 and 72 125): exploded view of the cabinet and service position. Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ 5.0 5.1 5.2 Philips, CDI 450 service manual, sections 7.2 and 7.3 (PCS 72 140 to 72 142): the CDM12 replaced as an assembly; the main board replaced when the microprocessor, CIAP or digital video section is defective; supply voltage and clock measurements. Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ 6.0 6.1 Philips, CDI 450 service manual, section 8 Partslist (PCS 72 143 to 72 148). Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ 7.0 7.1 Philips, CDI 450 service manual, sections 6.3 and 6.4.2 (PCS 72 132 and 72 133): power supply PCB layout and circuit diagram; main panel component side with grid index. Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ Philips, CDI 450 service manual, section 5 Service software (PCS 72 126 to 72 128): the Low Level Test and the Service Shell. Hosted as File:Philips CDI 450 Service Manual.pdf.
- ↑ 9.0 9.1 9.2 Philips Consumer Electronics (Magnavox), CDI450 / CDI550 Operating Instructions, 1994, 20 pp., from the Internet Archive item philips-cd-i-cdi-450-and-550-manual (retrieved 2026-10-21). Hosted as File:Magnavox CDI450 CDI550 Operating Instructions.pdf.
