Philips CDI 604 Capacitor Replacement Guide

From RetroTechCollection

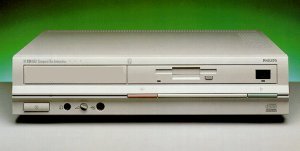

Philips CDI 604 (Philips press photograph)
Philips CDI 604 (Philips press photograph, as published by ICDIA)

No capacitor values have been published for the Philips CDI 604. No service manual for it has been found, and ICDIA has no brochure or manual for it among its scans.[1][2] For failure signs in general see Capacitor Failure Symptoms.

What is known

[edit | edit source]
  • The 604 is built on the professional Mini MMC board, the same board family as the CDI 605 and 605T; the 601 and 602 use the different Maxi MMC board.[3]
  • Retrostuff, a CD-i repair site, points to the CDI 220/00 service manual for the professional Mini MMC board. The 220/00 is a consumer player, and the professional board differs at least in its multi-region video encoder panel and the parts marked "CDI6XX ONLY" on the CD panel diagrams, so that manual is a guide to the layout and not a parts list for the 604.[3][4] What it lists is on the Philips CDI 220 Capacitor Replacement Guide.
  • The Philips service manual for the tray-loading CDI 605T gives values for that player's CD panel, control panel and expansion panel; they are set out on the Philips CDI 605 Capacitor Replacement Guide. Whether the 604's boards match them is not known.
  • The supply is a multi-voltage switch-mode unit with a voltage selector.[5]
  • The 8 KB timekeeper NVRAM contains a lithium cell, not a capacitor; see the maintenance page.[6]

Recording your own board

[edit | edit source]
Record sheet (one row per electrolytic)
Board Reference Capacitance Voltage Temperature rating Diameter x height Polarity mark Notes
Supply
MMC board
CD panel
Encoder panel
  1. Photograph each board from above before removing anything, with the reference numbers readable, and note the Philips number printed on each board.
  2. Read the value, voltage and temperature rating from each capacitor's sleeve, and measure its diameter, height and lead spacing.
  3. Compare each board's reference numbers and positions with the 220/00 and 605T drawings; where a board matches, those manuals' values can be checked against what you read on the parts.
  4. Note the polarity marking at each position. On a Philips CDI 350, retrostuff fitted two electrolytics the wrong way round by following the + marks instead of the white dots.[7]
  5. In the parts lists of Philips's later CD-i service manuals (CDI 450 and 470), every electrolytic that has a service code has one beginning 4822 124.[8][9]

Procedure

[edit | edit source]
  1. Unplug the player and leave the power switch on for some time; retrostuff warns that the large filter capacitors in CD-i supplies can give a shock if they have not discharged.[5]
  2. Replace like for like: the same capacitance, at least the same voltage, and the same polarity.
  3. Check the voltage selector before switching on.[5]
  4. After reassembly, confirm that the player reaches the player shell and plays a disc; see the Philips CDI 604 Troubleshooting Guide.
[edit | edit source]

References

[edit | edit source]
  1. ↑ The New International CD-i Association, "CD-i Service Manuals" (retrieved 2026-10-21): no manual for the CDI 604.
  2. ↑ The New International CD-i Association, "Brochures - Professional CD-i players" (retrieved 2026-10-21): no brochure for the CDI 604.
  3. ↑ 3.0 3.1 Retrostuff, "Modifications for Philips CD-i Players" (retrieved 2026-10-20), section "JNMS, Maxi MMC and Mini MMC (prof.)": 601 and 602 Maxi MMC; 604, 605 and 605T Mini MMC; service manual "use CDI 220/00 service manual"; professional and authoring players have multi-region encoder panels.
  4. ↑ Retrostuff, "Philips CDI605 RGB SCART Adapter", 27 January 2021 (retrieved 2026-10-21): parts marked "CDI6XX ONLY" in the 220/00 service manual's CD panel circuit diagram.
  5. ↑ 5.0 5.1 5.2 Retrostuff, "Philips CD-i Power Supply Units", 2024, updated 2026 (retrieved 2026-10-20): general information and warning; section "Maxi MMC / Mini MMC".
  6. ↑ Retrostuff, "NVRAM+RTC Solutions for Philips CD-i Players", 2021, updated 2025 (retrieved 2026-10-20), section "8 KB (Timekeeper)".
  7. ↑ Retrostuff, "Philips CDI350 Repair Part 3", 24 May 2020 (retrieved 2026-10-20).
  8. ↑ Philips, CDI 450/00/05/11/17 service manual, P.S. 0694, 4822 725 24741, parts lists (PDF pp. 31, 32 and 35). Hosted as File:Philips CDI 450 Service Manual.pdf.
  9. ↑ Philips, Compact disc interactive player CDI 470/00/05/06 service manual, P.S. 0795, 4822 725 24768, sections 8.2 and 8.4, parts lists (PCS 85 629 and 85 633). Hosted as File:Philips CDI 470 Service Manual.pdf.
