Daewoo CPC-400 User Manual
The Daewoo CPC-400 User Manual is Daewoo Electronics' Korean owner's manual for the X-II personal computer, covering the Daewoo CPC-400 and CPC-400S.[1] The scan has 265 pages; the printed page number is five less than the PDF page. It is written in Korean and carries no part number or date.
Contents
[edit | edit source]| Part | Starts | Subjects |
|---|---|---|
| 1. 설치편 (installation) | 1 | Handling precautions (3), names and functions of the parts (4), connecting peripherals (6), keyboard (10), starting the computer (12), when something is wrong (15) |
| 2. 해설편 (explanation) | 17 | Screen modes, colour, sprites, superimpose and digitising, clock (30), system settings, files, data recorder, memory disk, floppy disks |
| 3. MSX-DOS | 45 | MSX-DOS commands and Disk BASIC |
| 4. BASIC | 65 | MSX-BASIC command reference |
| 5. Example programs | 169 | Listings |
| 6. 수퍼 그래픽 (Super Graphic) | 185 | The graphics program on the system disk, which needs the superimpose and digitiser board of the CPC-400S |
| 7. 자료편 (reference) | 213 | Error messages, system block diagram (224), I/O map, cartridge slot pin assignments (235) |
Pages useful for repair:
- Printed page 4: the front panel (reset switch, cartridge slot, drive A with its lamp and eject button, power switch and lamp, the door over the light pen and joystick sockets, keyboard connector).

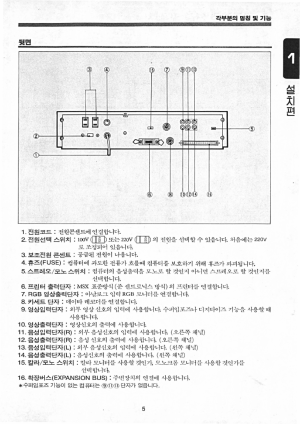

- Printed page 5: the rear panel: power cord, 100 V/220 V selector (set to 220 V at the factory), auxiliary power outlets, fuse, stereo/mono switch, printer, RGB, cassette, video and audio sockets, colour/mono switch and expansion bus. Machines without the superimpose function lack the video and audio inputs.
- Printed page 12: set the selector to 100 V before use on 100 V mains; the power switch is at the bottom right of the front; the start-up screen shows "X2 Bios version 1.00" and "128K Video memory installed".
- Printed page 15: the owner's troubleshooting list.
- Printed page 30: the clock is backed up by dry cells; wrong time or date means the cells are exhausted.
- Printed page 235: cartridge slot pins, with ground on 41 and 43, +5 V on 45 and 47, +12 V on 48 and −12 V on 50.
What this manual does not contain
[edit | edit source]There is no circuit diagram, parts list, disassembly procedure or adjustment procedure. The fuse rating and the type of the clock cells are not given.
Pages that cite this document
[edit | edit source]- Daewoo CPC-400: front and rear panels, start-up screen and slot pins.
- Daewoo CPC-400 General Maintenance: voltage selector, fuse, clock cells.
- Daewoo CPC-400 Troubleshooting Guide: the owner's troubleshooting list and slot pins.
- Daewoo CPC-400 Capacitor Replacement Guide: slot pins for checking the rails.
References
[edit | edit source]- ↑ CPC 400 400 S, Internet Archive, 21 March 2019—link(accessed 2026-10-21) Uploaded by [email protected] with the description "Daewoo CPC-400/400S User Manual"; file CPC-400_400S.pdf, 265 pages, with a text layer added by Adobe Acrobat Paper Capture.
- ↑ Daewoo, X-II (CPC-400/400S) user manual, contents (PDF page 4) and section contents pages (PDF pages 6, 22, 50 and 190). Hosted as File:Daewoo CPC-400 User Manual (Korean).pdf.
Download: Daewoo CPC-400 User Manual (Korean).pdf
