National FS-1300 General Maintenance

From RetroTechCollection
National FS-1300

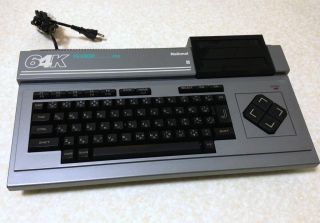

National FS-1300, with the cartridge slots at the top right

The National FS-1300 is a one-piece MSX1 computer from the end of 1985 with its keyboard and power supply built into the case.[1][2] Its rating label gives AC 100 V, 50/60 Hz, 24 W.[3] No service manual for the FS-1300 has been found. It uses the case of the CF-1200 and CF-2700,[2] and Panasonic's service manual for the export CF-2700 is held on the wiki as the Panasonic CF-2700 Service Manual. The procedures here follow that manual. Its part numbers and designators belong to the export CF-2700, so check them against the FS-1300 board before relying on any of them.

Mains supply

[edit | edit source]
  • The FS-1300 is built for 100 V mains.[3][4] On 220 to 240 V mains, run it from a step-down transformer with a 100 V output, rated comfortably above the 24 W on the label.
  • The power switch is on the left-hand side of the case.[2]
  • The export CF-2700 in the manual has a 220 V or 240 V transformer, a T160mA fuse on its power source board and a T3.15A fuse in the +5 V line on the main board.[5] A Japanese CF-2700 photographed inside has its supply on a separate board with a 1 A fuse and a transformer labelled "100V 14.7V 27VA".[6] Which arrangement the FS-1300 follows has not been published, so look before ordering a fuse.

Opening the case

[edit | edit source]
National CF-2700 inside, Japanese model

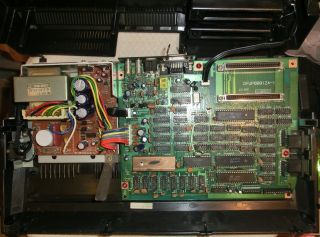

A Japanese CF-2700 in the same case: power supply board at the left, main board at the right

The export CF-2700 comes apart in this order:[7]

  1. Unplug the mains lead and all cables.
  2. Remove the three 3 × 6 mm screws shown as (A) in Fig. 28 of the manual.
  3. Lift the top cabinet a little and unplug the micro switch cable from CN5 on the main board, pressing the top of the connector as you pull it.
  4. Pull the top cabinet away in the direction shown in Fig. 29.
  5. For the keyboard, remove its two 3 × 6 mm screws, lift it, and unplug its two flat cables from CN8 and CN9. Hold both sides of the stiffened end of each cable as you pull it.
  6. For the main board, remove five 3 × 10 mm screws and one 3 × 8 mm screw, unplug CN1 (press the latch first) and CN2, and lift the board out.

When refitting the micro switch cable, the white lead goes to pin 1 of CN5.[7] The two micro switches are wired to CN5 as GND, SLOT 1 and SLOT 2.[8] Photograph each step on the FS-1300, as its screw positions have not been documented.

Cartridge slots

[edit | edit source]

The two slots sit side by side at the top right of the case.[1] The slot pinout is part of the MSX standard, and the export CF-2700's slots are described as conforming to it.[9] Clean the contacts of a cartridge with isopropyl alcohol on a lint-free cloth before blaming the slot.

The slots are also the easiest place to measure the supply rails without dismantling anything:[10]

MSX cartridge slot supply pins
Pin Signal
41, 43 Ground
45, 47 +5 V
48 +12 V
50 −12 V

The −5 V rail does not appear on the slot; on the export CF-2700 it is taken from −12 V by a resistor divider on the main board.[5]

Power supply

[edit | edit source]

On the export CF-2700, the supply gives four rails: +5 V from a discrete regulator round Q1, +12 V from an AN7812R, −12 V from an AN7912T, and −5 V from −12 V. The +5 V output is set by VR1: adjust it for 4.97 to 5.03 V at pin 45 of slot 1 (CN7), measured against pin 41.[5][11] The Japanese CF-2700's supply board carries a preset marked VR101.[6] Measure the FS-1300's +5 V at the slot first. If it is inside 4.97 to 5.03 V, leave the preset alone.

On the export model the +5 V and +12 V rails also depend on a PSW line. While PSW is held at ground both rails run; if it is open, both fall to about 0 V while −5 V and −12 V stay on.[5] The National FS-1300 Troubleshooting Guide uses this to narrow down a dead machine.

Electrolytic capacitors

[edit | edit source]

The main supply's reservoir capacitors are the ones worth replacing as routine. The small decoupling capacitors spread round the board can often be removed without the machine stopping.[12] The export CF-2700's list, and how to record the FS-1300's own, are in the National FS-1300 Capacitor Replacement Guide.

Video and connections

[edit | edit source]

The rear panel carries, from the left, the printer port, the cassette socket and the audio and video outputs, with the RF output and its channel switch below them; the two joystick ports are on the right-hand side.[2][4] The FS-1300 uses a TMS9918.[1] The export CF-2700 has a TMS 9929A and a separate video board with a colour-clock trimmer set to 4.43361875 MHz;[9][11] that adjustment does not apply to the FS-1300. On the Japanese CF-2700, the video and audio sockets are on the main board.[6]

Cassette

[edit | edit source]

MSX machines record by FSK at 1200 or 2400 baud.[9] Test the cassette interface with a known good recording at 1200 baud before suspecting the board.

Self test

[edit | edit source]

Panasonic's self test for the CF-2700 runs from a test cartridge, part number DFWV95C0001, and checks the VDP and video RAM, RAM, PSG, keyboard, ROM, cassette, joystick, printer and audio output.[13] The cartridge is not part of the scan, and its use on an FS-1300 is undocumented.

[edit | edit source]
