Sanyo MPC-25FD Capacitor Replacement Guide

From RetroTechCollection
Sanyo MPC-25FD power supply board

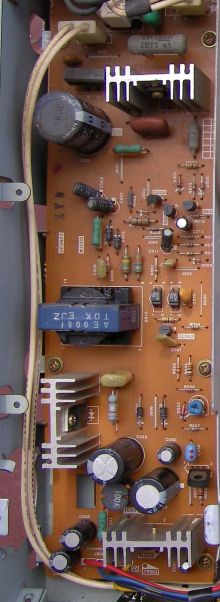

The MPC-25 supply board, UF0673. C005 is the large capacitor near the top; C050, C055 and C056 are at the bottom

No capacitor list, parts list or circuit diagram for the Sanyo MPC-25FD has been published, and no service manual for any Sanyo MSX is held in the MSX Archive's collection.[1] The positions below are read from photographs of an opened machine. Read the values from your own board.

What is known

[edit | edit source]

The supply is a separate board, marked UF0673, at the left of the case. These electrolytic capacitors can be identified on it from a photograph:[2]

Electrolytic capacitors visible on the MPC-25 supply board
Ref Position Notes
C005 Primary side, near the mains input Largest on the board; sleeve marked +85 °C
C007, C008 Primary side, below C005 Small, side by side
C011, C012 Primary side, beside the transistors Small
C050 Secondary side Medium
C055 Secondary side, beside the 100 µH choke Large
C056 Secondary side, lower left Medium
Two unmarked Secondary side, beside C055 and at the lower left Large and medium; designators hidden in the photograph

There are further electrolytics on the upper and lower boards.[3] No Sanyo values for any position are known.

The Philips NMS 8250, which Sanyo also built, has its supply documented in Philips's service manual, but that is a different board, 41 674 B12, with capacitors numbered C1050 to C1054.[4] Its values do not apply to the MPC-25FD.

Which to replace first

[edit | edit source]

General advice on MSX recapping from the MSX Resource Center forum is to replace the main power supply's capacitors whatever their condition, to judge the audio and video capacitors by the output, and to leave the small decoupling capacitors on the logic boards unless there is a reason.[5] On the MPC-25FD that means:

  1. The secondary-side capacitors of the supply board: C050, C055, C056 and the two unmarked ones.
  2. The primary-side capacitors, C005 and the small ones near it. C005 runs at rectified mains voltage, so copy its voltage rating exactly or go higher.
  3. Any capacitor near the video outputs, if the picture is poor.

While the case is open, deal with the Cadnica backup cell as described in the Sanyo MPC-25FD General Maintenance guide. Nickel-cadmium cells have a potassium hydroxide electrolyte, which corrodes the board if the cell leaks.[6]

Recording the board

[edit | edit source]
  1. Unplug the machine, open the case and let C005 discharge; measure across it.
  2. Photograph the supply board and both logic boards from above, then each electrolytic close up.
  3. For each capacitor, write down the designator, capacitance, voltage, temperature rating, diameter and height, and which side the stripe faces.
  4. Order replacements of the same capacitance and at least the same voltage. Use 105 °C parts on the supply board.
Template for the MPC-25FD's own list
Ref Board Value Voltage Temperature Diameter × height Notes
C005 Supply +85 °C (marked)
C055 Supply

Procedure

[edit | edit source]

Warning: the supply board's primary side carries mains voltage, and C005 can stay charged after the plug is pulled.

  1. Photograph and unplug the harness from the supply board, and lift the board out.
  2. Replace one capacitor at a time, stripe on the same side as the original.[5]
  3. Clean off any electrolyte and check the tracks. See Capacitor Failure Symptoms.
  4. Refit the board and the harness.

After the recap

[edit | edit source]

Switch on with no cartridge fitted and measure the rails at the cartridge slot: +5 V on pins 45 and 47, +12 V on 48 and −12 V on 50, against pin 41 or 43.[7] Then check that the machine starts, that the drive reads a disk and that the picture is clean. Remaining faults are covered in the Sanyo MPC-25FD Troubleshooting Guide.
