Sanyo MPC-25FD General Maintenance

From RetroTechCollection
Sanyo MPC-25FD inside, upper board

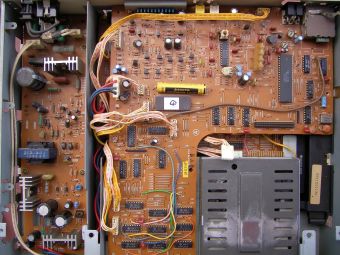

An opened MPC-25: the supply board at the left, the upper board with its soldered Cadnica backup cell, and the drive under a shield at the lower right

The Sanyo MPC-25FD is Sanyo's MSX2 desktop computer of 1985, with a 720 KB drive in the main unit, a separate keyboard and a 100 V power supply inside the case.[1] No service manual or user manual for it is available. The points below come from photographs of an opened machine, the MSX Resource Center and owners' reports.

Mains supply

[edit | edit source]
  • The MPC-25FD was made for Japanese 100 V mains.[1][2] On 220 to 240 V mains, run it from a step-down transformer with a 100 V output.
  • The 100 V outlet on the back is for a monitor.[1] Anything plugged into it is fed through the computer's own mains lead, so a step-down transformer must be rated for the computer and the monitor together.
  • The supply is a separate board at the left of the case, marked UF0673, with a TDK transformer marked AE0081.[3] Warning: the primary side of that board carries mains voltage, and its reservoir capacitor C005 can hold a charge after the plug is pulled. Unplug the machine and measure across C005 before touching the board.

Backup cell

[edit | edit source]

A Sanyo Cadnica cell is soldered to the upper board.[4] Cadnica is Sanyo's name for its nickel-cadmium cells, and their electrolyte is potassium hydroxide.[5] The battery in an MSX2 keeps the real-time clock and a few settings, such as the screen mode at start-up; the machine runs without it.[6]

  1. Look at the cell and the board under it for white or blue-green crust, and at the tracks and chip legs nearby.
  2. If it has leaked, or will be left in a stored machine, desolder it. Clean any residue as described in Battery Explosion, Capacitor or Corrosion Damage, which covers the alkaline electrolyte of nickel-cadmium cells.
  3. Replace it with a cell of the same type and voltage as printed on the original, or leave the position empty; the clock will then not keep time.

Disk drive

[edit | edit source]

The drive is a 3.5-inch 2DD unit, and the MPC-25FD formats only 2DD disks.[1] One owner's machine arrived with a dead Mitsumi D357 drive, which he replaced with a standard PC drive; he also said he had a pile of failed D357s.[2] General drive cleaning and repair is covered in Floppy Drive Repair.

Keyboard

[edit | edit source]

The keyboard plugs into a 26-pin connector, the type 2 Sanyo/Philips pinout also used by the Philips NMS 8250, NMS 8255 and NMS 8280.[7]

MPC-25FD keyboard connector (MSX Resource Center)
Pins Signal
1 to 11 Row outputs Y10 to Y0
12 to 19 Column inputs X7 to X0
20 KANA or CODE lamp
21 CAPS lamp
23 +5 V
24, 25, 26 Ground

[7] Keep the plug and socket clean, and do not pull the lead by its cable.

Cartridge slot and supply rails

[edit | edit source]

The single cartridge slot is on the right-hand side.[1] Its supply pins follow the MSX standard: +5 V on pins 45 and 47, +12 V on 48 and −12 V on 50, with ground on 41 and 43.[8] Measure there before opening the case.

Video

[edit | edit source]

The RGB output is the Japanese 21-pin RGB21 connector.[1] A European SCART cable does not work on it.[2] Use the composite video output, or a cable wired for RGB21.

Capacitors

[edit | edit source]

The supply board carries the reservoir capacitor C005 and a set of smaller electrolytics. No values have been published. How to record and replace them is in the Sanyo MPC-25FD Capacitor Replacement Guide.

[edit | edit source]

References

[edit | edit source]
